My arr stack. Hardened Docker Compose config for Jellyfin + Sonarr/Radarr + qBittorrent with VPN namespace isolation and zero-trust ingress.

I run this on Unraid. It took a few months to get the networking right — most guides just slap a firewall rule on the VPN and call it a day. I wanted actual isolation, not "it probably works." Here's what I landed on.

My family uses Seerr to request movies/shows and Infuse on Apple TV to watch them.

• Docker + Compose

• Tailscale account. Open these ports in your Tailscale ACL for the host running this stack: tcp:80, tcp:443 (Traefik, bound to your Tailscale IP) and tcp:8096 (Jellyfin direct, for LAN clients like Infuse / Apple TV). Nothing else is published to the host.

• ProtonVPN account with WireGuard keys (P2P-enabled servers in NL/CH).

• Domain on Cloudflare DNS with a scoped API token (not the Global API Key). Create the token at dash.cloudflare.com → My Profile → API Tokens with these permissions on the target zone:

  • Zone → Zone → Read
  • Zone → DNS → Edit

  This is the minimum required for the ACME DNS-01 challenge. See .env.example for the full variable list.

Fast track — download and run the guided setup wizard (no git required):

curl -L https://github.com/Lackoftactics/uncompressed/archive/main.tar.gz | tar xz
cd uncompressed-main && ./setup.sh

Or with git (gives you git pull for future updates):

git clone https://github.com/Lackoftactics/uncompressed.git
cd uncompressed && ./setup.sh

Manual setup — if you prefer to do it yourself:

cp .env.example .env              # fill in secrets, domain, Tailscale IP, WG keys, CF token
ln -s ../.env arr/.env            # each compose stack reads its own .env
ln -s ../.env infra/.env
docker network create traefik_proxy

Then start the stack (from the repo root — no cd needed):

docker compose -f infra/docker-compose.yml up -d  # traefik first
docker compose -f arr/docker-compose.yml up -d     # media pipeline (9 containers)

Each compose file declares env_file: ./.env, resolved relative to its own directory — so arr/docker-compose.yml needs arr/.env. Symlinking keeps one source of truth at the repo root.

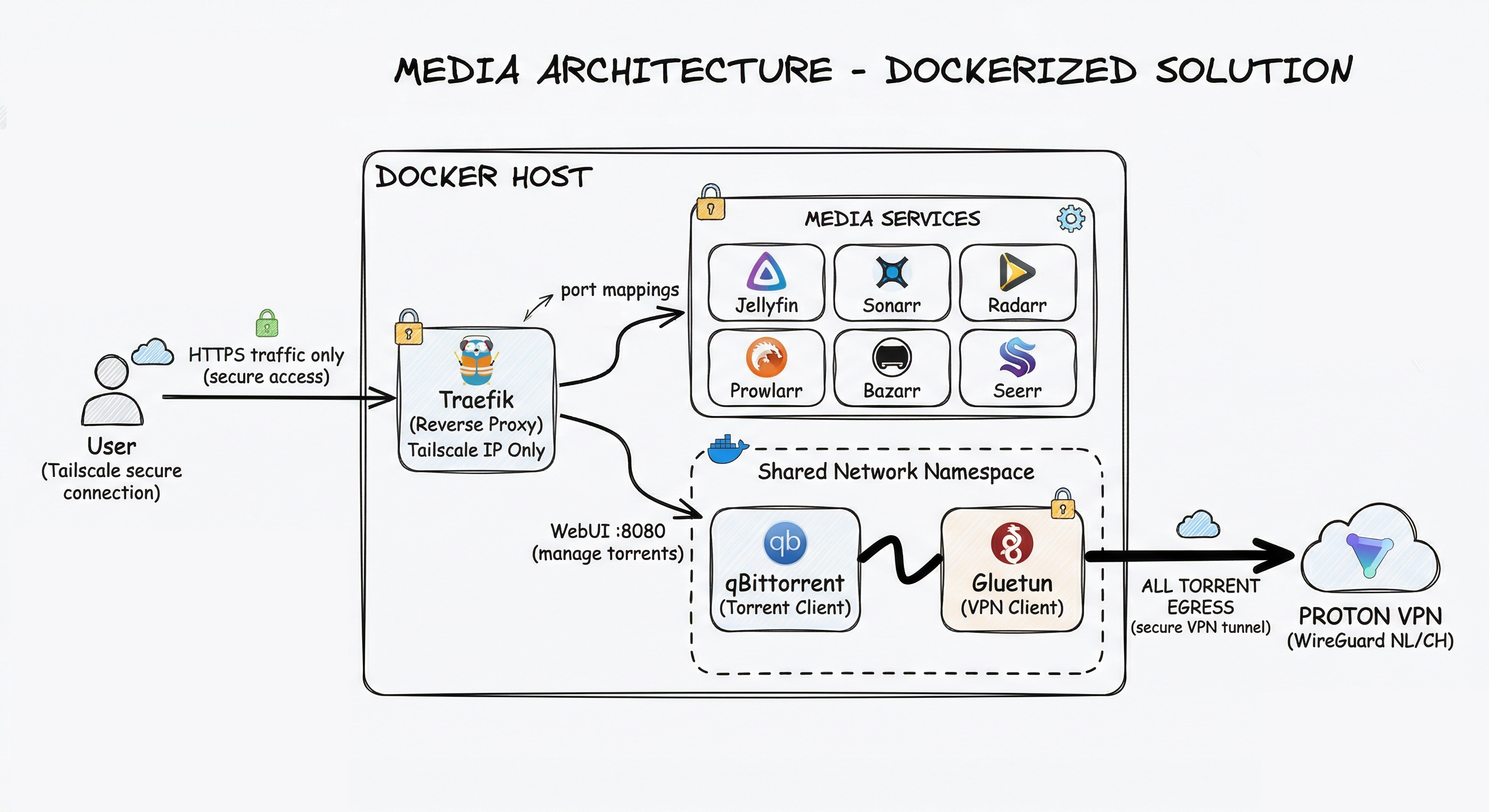

This is the part that's actually interesting. The services themselves are standard — the value is in how they're wired together.

VPN namespace isolation — qBittorrent doesn't just "use" the VPN. It runs inside gluetun's network namespace (network_mode: service:gluetun), meaning it shares gluetun's entire network stack. The container has no network interface of its own. An init script (10-config.sh) additionally forces BIND_TO_INTERFACE: tun0 as defense in depth. If the VPN drops, there is no path for traffic to take — it's a kernel boundary, not a firewall rule that could be misconfigured.

No published ports, with one exception — only Jellyfin publishes :8096 to the host so LAN clients (Infuse, Apple TV) can hit it directly. Everything else is reachable only through Traefik over the Docker network — there's no way to hit Sonarr/Radarr/Prowlarr/etc. by going to host:port and bypassing TLS + security headers.

Tailscale-only ingress — Traefik binds to ${TAILSCALE_IP}:443, not 0.0.0.0:443. You must be on the Tailscale mesh to reach any service. No ports face the public internet. HTTPS certs are auto-renewed via Cloudflare DNS challenge.

Three isolated networks — traefik_proxy for HTTPS ingress, arr_internal (marked internal: true) for service-to-service, vpn_network for tunnel traffic. Port forwarding from ProtonVPN is automatic — gluetun gets the forwarded port and pushes it to qBittorrent's API.

Cloudflare is used only as the ACME DNS-01 challenge target for cert renewal — control plane, not in the user-traffic path.

arr/ — Gluetun, qBittorrent, Jellyfin, Sonarr, Radarr, Prowlarr, Seerr, Bazarr, Autoheal. Every container has an endpoint-specific health check. Autoheal restarts anything that fails. depends_on: service_healthy prevents cascading startup issues.

infra/ — Traefik v2.10.7 reverse proxy with auto HTTPS via Cloudflare DNS challenge.

MIT
