Unidirectional Dataflow for Swift
SwiftRex is a Redux-style unidirectional-dataflow framework for Swift. One Store owns your app's state. Views dispatch actions; pure behaviors describe how state changes and which effects run; the Store — the only thing that executes anything — applies them. It works with the async runtime you already use: Swift Concurrency, Combine, RxSwift, ReactiveSwift or ReactiveConcurrency.
- One source of truth — one state tree, one store, read by views granularly: a view redraws only for what it reads.
- Nowhere to hide a side effect — everything but the Store is an inert, composable value.
- No races — every event is an action, processed in order on the main actor, synchronously in the same run loop.
- Testable without mocks — dependencies are plain closures; logic is pure functions.
- Modular — features are written against their own small types and lifted into the app; they run on Apple platforms and Linux.
This README is the tour. The DocC catalog goes deeper — and, if you want it, into the algebra.
import SwiftRex
import SwiftRexArchitecture // @Feature, @BoundTo
import SwiftRexSwiftConcurrency // Effect.task
import SwiftUI
@Feature
enum Movies {
struct State: Sendable, Equatable {
var movies: [Movie] = [] // Movie: Identifiable
var isLoading = false
}
enum Action: Sendable {
case onAppear
case loaded(Result<[Movie], APIError>)
}
struct Environment: Sendable {
var fetchMovies: @Sendable () async -> Result<[Movie], APIError>
}
static func behavior() -> Behavior<Action, State, Environment> {
.handle { action, _ in
switch action {
case .onAppear:
.reduce { $0.isLoading = true }
.produce { ctx in Effect.task { .loaded(await ctx.environment.fetchMovies()) } }
case let .loaded(.success(movies)):
.reduce { state in
state.movies = movies
state.isLoading = false
}
case .loaded(.failure):
.reduce { $0.isLoading = false }
}
}
}
typealias Content = MoviesView
}
@BoundTo(Movies.self) // injects `let viewStore: ViewStore<Movies.Action, Movies.State>`
struct MoviesView: View {
var body: some View {
List(viewStore.state.each(\.movies)) { movie in Text(movie.title) } // each row depends on its own movie
.onAppear { viewStore.dispatch(.onAppear) }
}
}Everything above is a value. The one object in the design — the Store — is created once, at the app's entry point:
@main
struct MoviesApp: App {
static let environment = Movies.Environment(fetchMovies: { await API.live.movies() })
let store = Store(initial: Movies.initialState(with: ()), behavior: Movies.behavior(), environment: MoviesApp.environment)
var body: some Scene {
WindowGroup { Movies.view(store: store, environment: MoviesApp.environment) }
}
}The App keeps the real Store as a plain let — it is dispatched to and followed, never observed. Movies.view(store:environment:) (generated) makes a view store from it once and keeps it for the life of the view. Build Your First Feature walks through it step by step.
Swift Package Manager, Swift 6.3+. macOS 13+, iOS 16+, tvOS 16+, watchOS 9+, visionOS, Linux.
dependencies: [
.package(
url: "https://github.com/SwiftRex/SwiftRex.git",
from: "1.0.0",
traits: ["ReactiveConcurrency"] // only for a trait-gated bridge; omit otherwise
)
],
targets: [
.target(name: "MyApp", dependencies: [
.product(name: "SwiftRex", package: "SwiftRex"),
.product(name: "SwiftRex.SwiftConcurrency", package: "SwiftRex"),
.product(name: "SwiftRex.SwiftUI", package: "SwiftRex"),
.product(name: "SwiftRex.Architecture", package: "SwiftRex"),
]),
.testTarget(name: "MyAppTests", dependencies: [
"MyApp",
.product(name: "SwiftRex.Testing", package: "SwiftRex"),
])
]| Product | Trait | What it adds |
|---|---|---|
SwiftRex |
— | The core: store, behaviors, reducers, middlewares, effects, channels, Relay.Scope |
SwiftRex.SwiftConcurrency |
— | Effect.task / .throwingTask / .asyncSequence, asChannel on any AsyncSequence |
SwiftRex.Combine |
— | asEffect() / asChannel() on Publisher; stateStream is a Publisher |
SwiftRex.RxSwift |
RxSwift |
The same bridge for Observable |
SwiftRex.ReactiveSwift |
ReactiveSwift |
The same bridge for SignalProducer / Signal |
SwiftRex.ReactiveConcurrency |
ReactiveConcurrency |
The same bridge for ReactiveConcurrency's cold, async/await-native Publisher |
SwiftRex.SwiftUI |
— | ViewStore, @OwnedStore, granular reads (Observation on iOS 17+, Combine below), bindings, presentation |
SwiftRex.Architecture |
— | @Feature / @BoundTo, building a child's behavior and view from one Relay.Scope, navigation reducers |
SwiftRex.Operators |
— | <>, |>, >>>, … |
SwiftRex.Testing |
— | TestStore — test targets only |

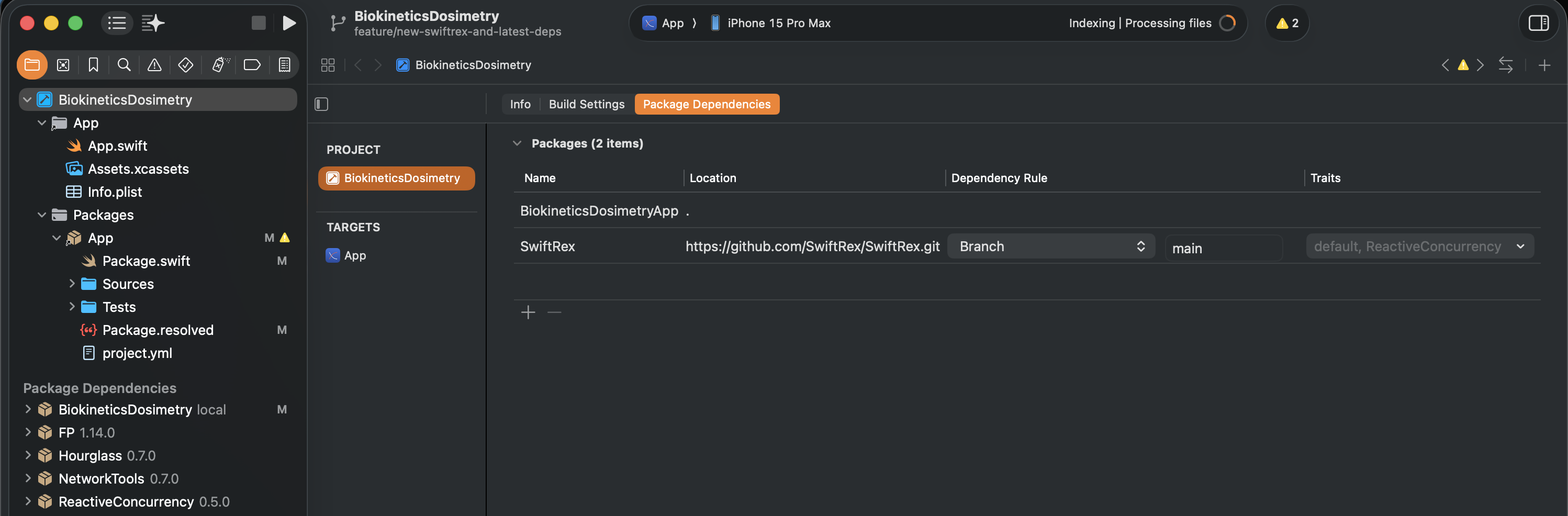

The three third-party bridges are behind package traits of the same name, off by default, so picking one never downloads the others. In Xcode, tick the trait in the Traits column of Project ▸ Package Dependencies:
Xcode project caveats (trait propagation in project.pbxproj, XcodeGen) are in the Installation article.
┌───────────────┐
│ State │ private to the Store
└───────────────┘
▲
│ maintains
┌──────────┐ dispatch(action) ┌───────────────┐
│ │ ──────────────────────▶│ │
│ View │ │ Store │
│ │ ◀──────────────────────│ │
└──────────┘ new state (stream) └───────────────┘
│ ▲
produce / supervise │ │ dispatch(action)
▼ │
┌───────────────┐
│ Effects │ side effects, I/O
└───────────────┘
- An action is a value describing something that happened — a tap, a response, a tick.
- State is a value holding everything the app knows right now. The Store owns it; nobody else can even read it — a store is followed through its
stateStream, and views read through a view store. - A behavior describes how a feature responds: it reduces actions into state, produces effects from actions, and supervises long-lived effects for a given state.
- The Store is the only executor. It applies the behavior, publishes each new state, runs the effects and feeds the actions they dispatch back into the same loop.
- An effect does the I/O and reports back with actions.
Modelling tips: State and Actions.
Behavior<Action, State, Environment> is the unit of logic, one builder per concern:
| Builder | Concern | Does |
|---|---|---|
.reduce { action, state in … } |
Reducer | folds an action into the state |
.produce { action, context in … } |
Effect producer | produces a one-shot effect from an action |
.supervise { state in … } |
Effect supervisor | keeps long-lived effects alive while the state calls for them |
They only describe; the Store does the work. A location recorder that needs all three — it records each fix, reverse-geocodes it, and keeps the location stream open while recording:
let recorder = Behavior<Action, State, Environment>
.handle { action, _ in // reduce + produce, per action
switch action {
case .startTapped: .reduce { $0.isRecording = true }
case .stopTapped: .reduce { $0.isRecording = false }
case let .located(coordinate):
.reduce { $0.route.append(coordinate) }
.produce { ctx in ctx.environment.geocode(coordinate).asEffect(Action.resolved) }
case let .resolved(place): .reduce { $0.place = place }
}
}
.supervise { state in // keyed on state, not on an action
Supervision { env in
state.isRecording ? [env.locationUpdates().asChannel(id: "location", Action.located)] : []
}
}Behaviors compose with <> (or Behavior.combine([…])): mutations fold in order, effects run in parallel, supervisions union. .on routes one action into another declaratively:
let routed = Behavior<AppAction, AppState, World>.identity
.on(.action(\.didTapLogout), dispatch: .action { _ in .auth(.logout) })
.on(.action(\.didLoad), when: { !$0.isLoading }, dispatch: .action(\.renderItems))
.on(.action(\.select)) { id, state in state.selected = id } // reduce onlyA behavior is a fusion of two smaller values that also work alone: Reducer<Action, State> (the state half) and Middleware<Action, State, Environment> (the effect half, which reads state but never writes it). Pair them with Behavior(reducer:middleware:). Reference: Behavior · Reducer · Middleware.
The design decision you'll make most often:
Produced — .produce |
Supervised — .supervise |
|
|---|---|---|
| Shape | one-shot: fire, complete | long-lived: emits over time |
| Reason | this action happened | the state says it should exist |
| Examples | an HTTP call, saving a document, a permission request | a socket, a GPS stream, a timer, a database observer |
| Teardown | ends by itself | leaving the state is the teardown |
A CRUD app is mostly produced effects. A live feature — location, prices, chat — is the supervised case:
let room = Behavior<RoomAction, RoomState, RoomEnv>
.reduce { action, state in
switch action {
case let .join(id): state.joinedRoom = id
case .leave: state.joinedRoom = nil
case let .received(message): state.messages.append(message)
}
}
.supervise { state in
Supervision { env in
guard let id = state.joinedRoom else { return [] } // no room → no socket
return [
Channel(id: id) { dispatch in
let socket = env.connect(id)
socket.onMessage { dispatch(.received($0)) } // events out → actions
return ChannelHandler(receive: { socket.write($0) }, cancel: { socket.close() })
}
]
}
}After every state change the Store reconciles the channels the state asks for: new ones open, missing ones cancel, unchanged ones are left alone. When joinedRoom becomes nil the socket closes — no .leave handler calls close(), no cancellation bookkeeping. If you find yourself dispatching "start X" / "stop X" pairs and cancelling by id, that's a supervisor waiting to happen. A produced effect can still send into a live channel with Effect.broadcast(_:channel:).
Deep dives: State-Driven Effects · Channels · examples: timer, polling, chat room, WebSocket, delay.
Effect is runtime-agnostic. Every bridge has the same two verbs — asEffect for a one-shot effect, asChannel for a supervised one — and turns stateStream into that runtime's own type.
// Swift Concurrency
.produce { ctx in Effect.task { .loaded(await ctx.environment.fetch()) } }
Effect.throwingTask(Action.saved) { try await environment.save(draft) } // the Result arrives in the action
env.locationUpdates().asChannel(id: "location", Action.located) // any AsyncSequence
for await state in store.stateStream { render(state) } // current state first
// ReactiveConcurrency, Combine, RxSwift, ReactiveSwift — the same surface
ctx.environment.search(query).asEffect(Action.results) // a Publisher / Observable / SignalProducer
env.priceFeed().asChannel(id: "prices", Action.tick)
store.stateStream // a Combine Publisher, an RxSwift Observable, a SignalProducer; `.asPublisher` for ReactiveConcurrencySwap the runtime, keep the architecture — or mix them.
A plain store can't be read — only followed. Views read through a ViewStore, the one store with a snapshot and observation:
struct PlayerScreen: View {
@OwnedStore var viewStore: ViewStore<PlayerAction, PlayerState>
init(store: some StoreType<PlayerAction, PlayerState>) {
_viewStore = OwnedStore(wrappedValue: store.viewStore()) // made explicitly, kept once
}
var body: some View {
Text(viewStore.state.title) // depends on \.title only
TransportBar(transport: viewStore.state.transport) // a position: the subview depends on what it reads
Slider(value: viewStore.binding(.state(\.volume).action(\.setVolume))) // reads state, dispatches on write
Button("Next") { viewStore.dispatch(.next) }
}
}- Making and keeping.
store.viewStore()makes a view store from any store;@OwnedStorekeeps it in the view that uses it (@Featuredoes both for you). Views below take a plainlet viewStore. The strategy is picked where it's made: Observation on iOS 17+, Combine below, or.viewStore(.combine)to force it. - Granular reads.
viewStore.state.xrecords exactly which key paths a view reads, at any depth, and only views whose paths changed redraw. A 10 Hz playhead redraws the one view that shows it. - Children are pure stages. Derive a child from a view store and hand it to the child view, which keeps its own view store:
PlayerView(store: viewStore.projection(.action(\.player).state(\.player))) // a slice
if let detail = viewStore.traverse(.action(\.detail).state(\.detail)) { // an optional (or Presentation) slot
DetailView(store: detail) // present while it's there; holds its last value while it animates away
}
ForEach(viewStore.each(.action(\.row).state(\.rows))) { row in RowView(store: row) } // rows that dispatch or bind- Lists are cheap when rows only display.
ForEach(viewStore.state.each(\.rows)) { RowLabel(row: $0) }gives each row a position in the one view store: an unrelated change costs microseconds for thousands of rows. Give a row its own view store (each(scope)) only when it dispatches or binds — each costs a few microseconds per change. - Bindings are one form,
binding(.state(…).action(…)): two-way for a value, dismiss-only for an optional, both dismissal edges for aPresentation.
Observing a Store in SwiftUI · Stores at a Glance · Features
@Feature turns a namespace enum into a feature: optics on every nested domain type (@Lenses, @Prisms), initialState(with:), a view(store:environment:) that keeps its view store, and the Feature conformance. @BoundTo injects the view's let viewStore. Features grow by adding declarations — an Environment, a ViewState/ViewAction with mapState/mapAction when the screen's shape differs from the domain's, an Input seed, public when it becomes its own module:
@Feature
public enum HeroDetails {
public struct State: Sendable, Equatable { … }
public enum Action: Sendable { … }
public struct Environment: Sendable { … }
public struct ViewState: Sendable, Equatable { … } // what the pixels need
public enum ViewAction: Sendable { case onAppear } // what the pixels can say
public static let mapState = Reader<Environment, @MainActor @Sendable (State) -> ViewState> { env in
{ state in ViewState(state, formatter: env.formatter) }
}
public static let mapAction = Reader<Environment, @Sendable (ViewAction) -> Action> { _ in { _ in .load } }
public static func behavior() -> Behavior<Action, State, Environment> { … }
public typealias Content = HeroDetailsView
}The whole progression, from the leanest feature to a full module: Features.
Features never know about the app. They are written against their own types and lifted into the app's at the composition root, through a Relay.Scope: how the child's actions, state and environment sit inside the parent's. The same scope lifts the behavior, projects the store, and builds the view.
@Prisms enum AppAction: Sendable {
case movies(Movies.Action)
case player(Player.Action)
}
@Lenses struct AppState: Sendable, Equatable {
var movies = Movies.State()
var player = Player.State()
}
enum AppFeature: Rig { // the app's (Action, State, Environment)
typealias Action = AppAction
typealias State = AppState
typealias Environment = World
}
enum AppScopes { // one wiring per feature, declared once
static let movies = ScopeOf<AppFeature>
.action(\.movies) // `\.case` key path: narrows incoming actions, embeds outgoing ones
.state(\.movies) // the slice
.environment { world in Movies.Environment(fetchMovies: world.api.movies) }
}
let store = Store(
initial: AppState(),
behavior: AppScopes.movies.behavior(of: Movies.self) <> AppScopes.player.behavior(of: Player.self),
environment: world
)
// and in the router, the same scope builds the screen:
AppScopes.movies.view(of: Movies.self, from: viewStore, world: world)Inline scopes work the same way — Movies.behavior().lift(.action(\.movies).state(\.movies).environment(…)). Every lane takes the minimum it needs: a \.case key path, a key path, a prism, a lens, an affine traversal or plain closures. Optionals and collections use the same builder with a different host:
let rows: Behavior<AppAction, AppState, World> = Behavior.combine([
detailBehavior.liftOptional(.state(\AppState.detail)), // runs only while `detail` is there
rowBehavior.liftCollection(.action(\.row).state(\.rows).environment(\.rowEnv)), // one element, by id
rowBehavior.liftEach(.action(broadcast: \.tickAll, into: \.row).state(\.rows).environment(\.rowEnv)), // every element
])A collection lane locates elements by Identifiable id, a custom id (.state(\.rows, id: \.slug)), position (.state(indexed:)) or key (.state(dictionary:)); each element's effects are scoped to its id.
Bridges connect features without coupling them — a root-level .on routes one feature's output into another's input, and neither module imports the other:
let bridge = Behavior<AppAction, AppState, World>.identity
.on(.action(\.player.finished), dispatch: .action { movieID in .movies(.markWatched(movieID)) })Deep dives: Lifting · Optionals and Collections · Modularisation.
Navigation is state: routes live in the state tree, behaviors change them, and SwiftUI containers bind to them.
| State | Binding | Container |
|---|---|---|
Route? — the optional is the content |
viewStore.binding(.state(\.route).action(\.dismiss)) |
.sheet, .fullScreenCover, .popover |
Presentation<Child> + PresentationAction |
viewStore.binding(.state(\.editor).action(\.editor)) — straight into .sheet(item:) |
.sheet, .fullScreenCover, .popover |
[Route] |
viewStore.binding(.state(\.path).action(\.nav.setPath)) |
NavigationStack(path:) |
| a selection | viewStore.binding(.state(\.tab).action(\.tab.select)) |
TabView, NavigationSplitView |
| open scenes | viewStore.hasScene(…) |
WindowGroup(for:) |
NavigationStack(path: viewStore.binding(.state(\.path).action(\.nav.setPath))) {
HomeView(viewStore: viewStore)
.navigationDestination(for: AppRoute.self) { route in router.view(for: route) }
}
.sheet(item: viewStore.binding(.state(\.editor).action(\.editor))) { _ in
AppScopes.editor.view(of: Editor.self, from: viewStore, world: world) // present while presented or dismissing
}A router builds each destination from its declared scope — total, optional or Presentation slot alike — handing the child a pure stage; the child's view keeps its own view store. Dismissing is changing state, a deep link is setting state, and a route's supervised effects stop when its state leaves the tree. StackNavigation, ModalNavigation and SelectionNavigation come with ready-made reducers. Navigation · Navigation End to End
TestStore (SwiftRex.Testing) is deterministic and exhaustive. Dependencies are plain closures, so tests stub functions — no mocks:
@MainActor
@Test func loadingFillsTheShelf() async {
let books = [Book(id: "1", title: "Dune")]
let store = TestStore(
initial: Library.initialState(with: .init(shelfID: "sci-fi")),
behavior: Library.behavior(),
environment: Library.Environment(fetch: { _ in books })
)
store.dispatch(.onAppear) { $0.isLoading = true } // describe the state after the action
await store.runEffects() // run what it produced
store.receive(\.loaded) { loaded, state in // the action the effect sent back
state.isLoading = false
state.books = loaded
}
}receive matches by \.case key path, so Action needn't be Equatable. Effects run through the production effect engine (scheduling and channels included) and supervision runs as in the Store; inject a test clock to drive time. By default a test fails on an unasserted action, a leftover effect, or an effect channel left open (one the state still keeps is fine); exhaustive: false relaxes it. TestStore is also a store: project it, or run a real view against testStore.viewStore().
This is a ground-up rewrite — CombineRex, ReduxStoreBase and the old middleware protocol don't carry over. The CHANGELOG summarises what changed, and Migrating to ViewStore and StateStream has the mechanical steps.
Start here: Installation · Build Your First Feature · Adding Effects · Features · Observing a Store in SwiftUI · Navigation
Concepts: State and Actions · Stores at a Glance · Lifting · Optionals and Collections · Modularisation · The Algebra
State-driven effects: State-Driven Effects · Channels · examples: Timer, Polling, Chat Room, WebSocket, Delay
Reference: Behavior · Reducer · Middleware · Effect · Store
Tooling: LoggerMiddleware · InstrumentationMiddleware
Apache 2.0 — see LICENSE. Contributions welcome: CONTRIBUTING.md · Code of Conduct.
