Welcome to the FZ nRF24 Jammer repository! 🎉 Dive into the world of RF interference with this project based on the Flipper Zero and NRF24.
- 🚀 What Can You Do with This?
- 📋 List of Components
- 🧑🔧 Let's Get Started with Soldering!
- 📥 Installing App

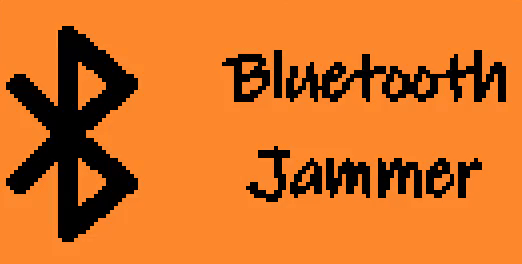

- 🎮 App Control

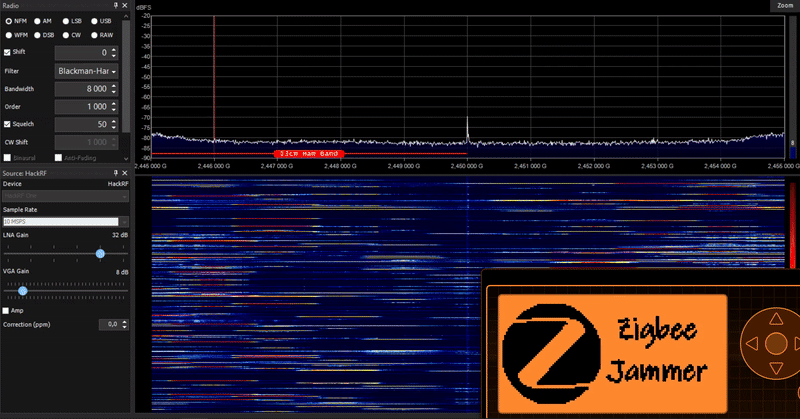

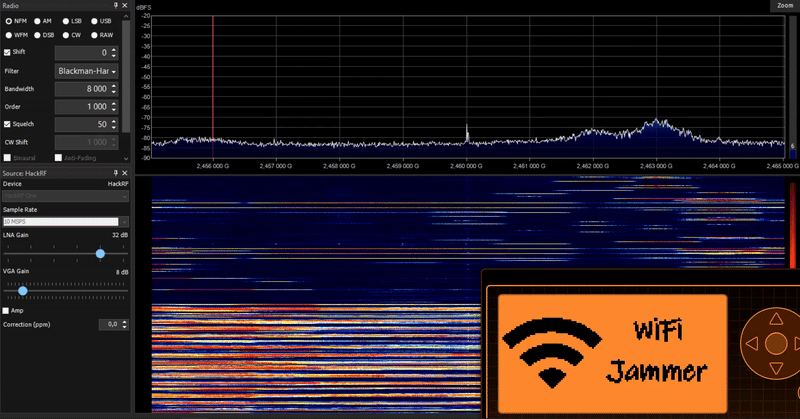

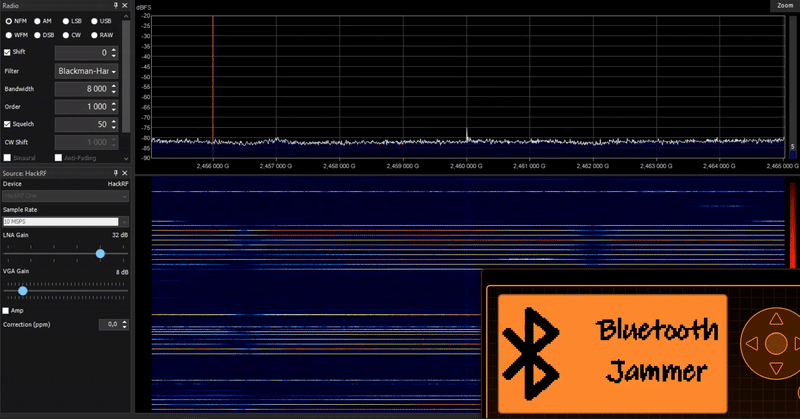

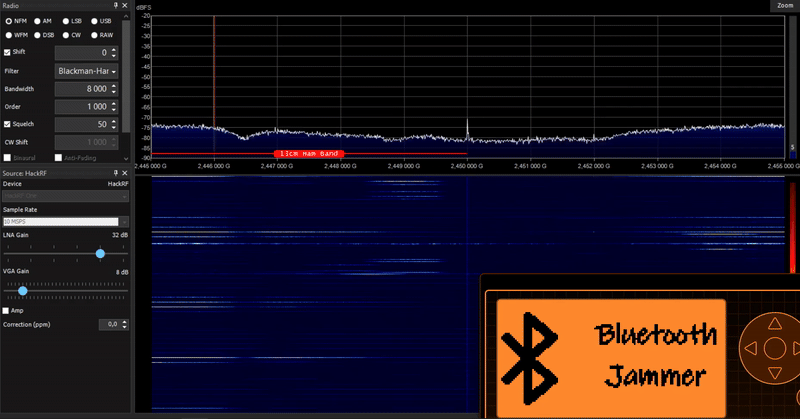

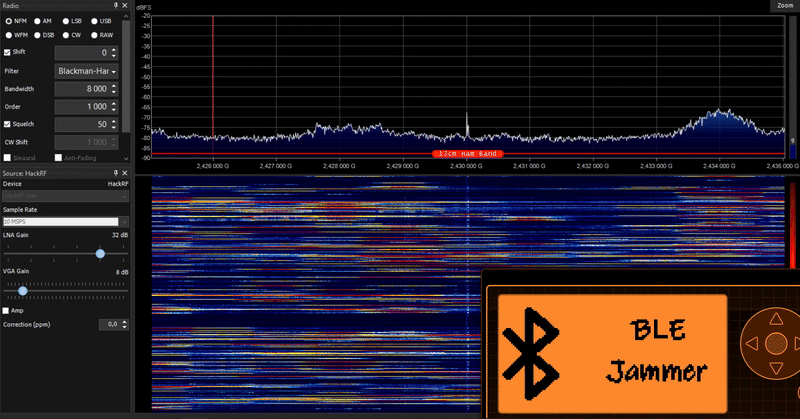

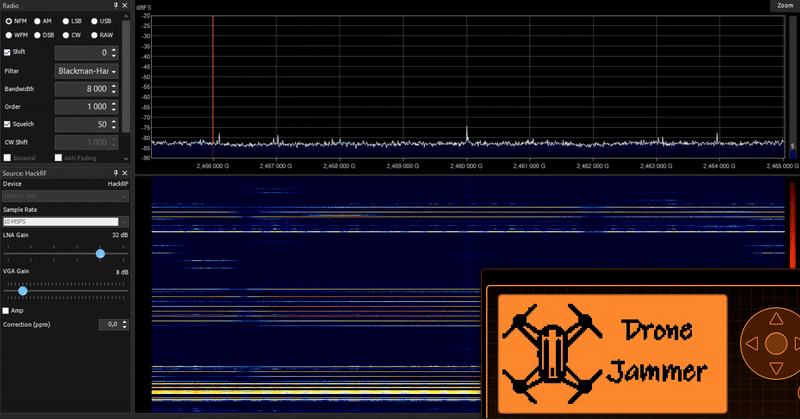

- 🎉 Final Outcome
- 🙏 Acknowledgments
- ❤️ Support the project
- ⭐ Star History
This jammer is based on the Flipper Zero integrated with the NRF24 module. Thanks to its capabilities, you can effectively suppress signals from various technologies, including:
- Bluetooth 🔊
- BLE 📱
- Drones 🚁
- Wi-Fi 📶
- Zigbee📡
To bring this project to life, you will need the following components:
- NRF24L01+PA+LNA module 🛠️
- 16V capacitor rated at 100µF 🔋
- Step Down Module AMS1117 3.3V

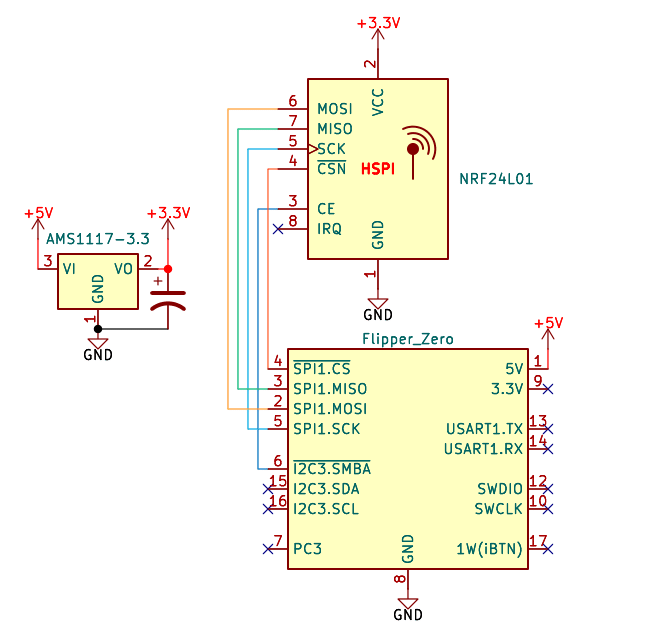

One nRF24

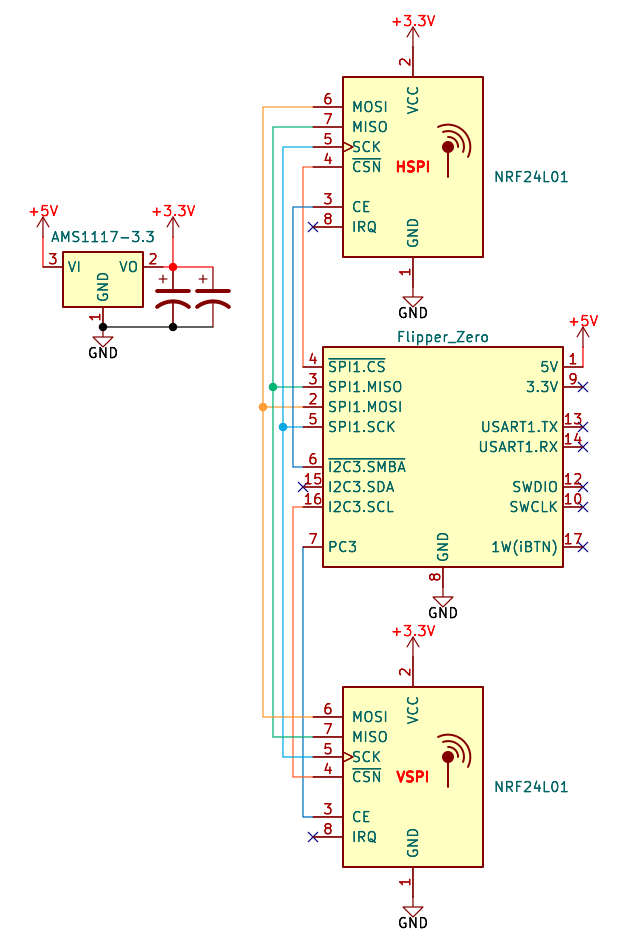

Two nRF24
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | B2 |
| CSN | A4 |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | C3 |
| CSN | C0 |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| AMS1117 | Flipper Zero GPIO |
|---|---|
| VIN | 5V |
| GND | GND |
| nRF24 | AMS1117 | capacitor |
|---|---|---|
| VCC | OUT | + |
| GND | GND | - |

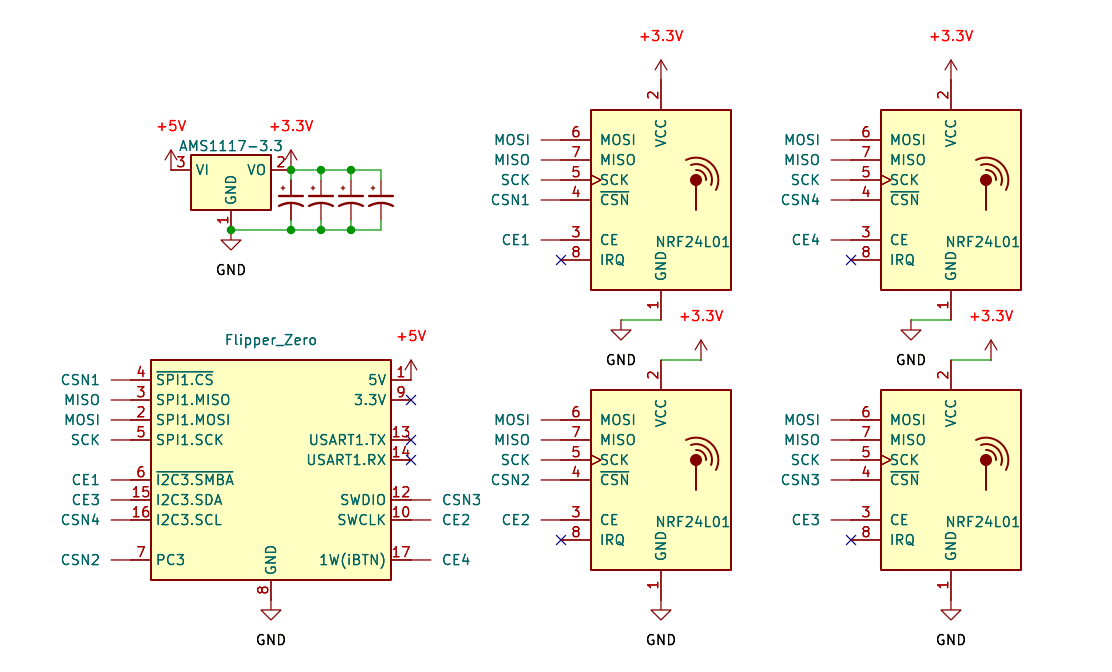

Four nRF24
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | B2 |
| CSN | A4 |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | SWC |
| CSN | C3 |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | C1 |
| CSN | SIO |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| nRF24 | Flipper Zero GPIO |
|---|---|
| CE | 1W |
| CSN | C0 |
| SCK | B3 |
| MOSI | A7 |
| MISO | A6 |
| IRQ |
| AMS1117 | Flipper Zero GPIO |
|---|---|
| VIN | 5V |
| GND | GND |
| nRF24 | AMS1117 | capacitor |
|---|---|---|
| VCC | OUT | + |
| GND | GND | - |
Anyone who built the device before version 1.4.0, please add the AMS1117 module to your circuit, without it the nrf24 does not work correctly
- Download the app from the releases section that corresponds to your firmware.
- Install qFlipper
- In qFlipper, go to the "File manager" section, and transfer the application downloaded from release to a convenient location on Flipper Zero
- Up or Right button short press → Next menu item
- Down or Left button short press → Previous menu item
- OK button short press → Select menu item
- Back button short press → Exiting the app
- Up button short press → Channel +1
- Up button long press → Continuous channel +1 (every 100ms)
- Up button double press → channel +10
- Up button triple press → channel +100
- Down button short press → Channel -1
- Down button long press → Continuous channel -1 (every 100ms)
- Down button double press → channel -10
- Down button triple press → channel -100
- Right button short press → Switch jamming mode
- Left button short press → Switch jamming mode
- OK button short press → Select channel
- Back button short press → Back to the last selected subject
Back button short press → stops active attacks
- huuck - original author of the FlipperZeroNRFJammer
