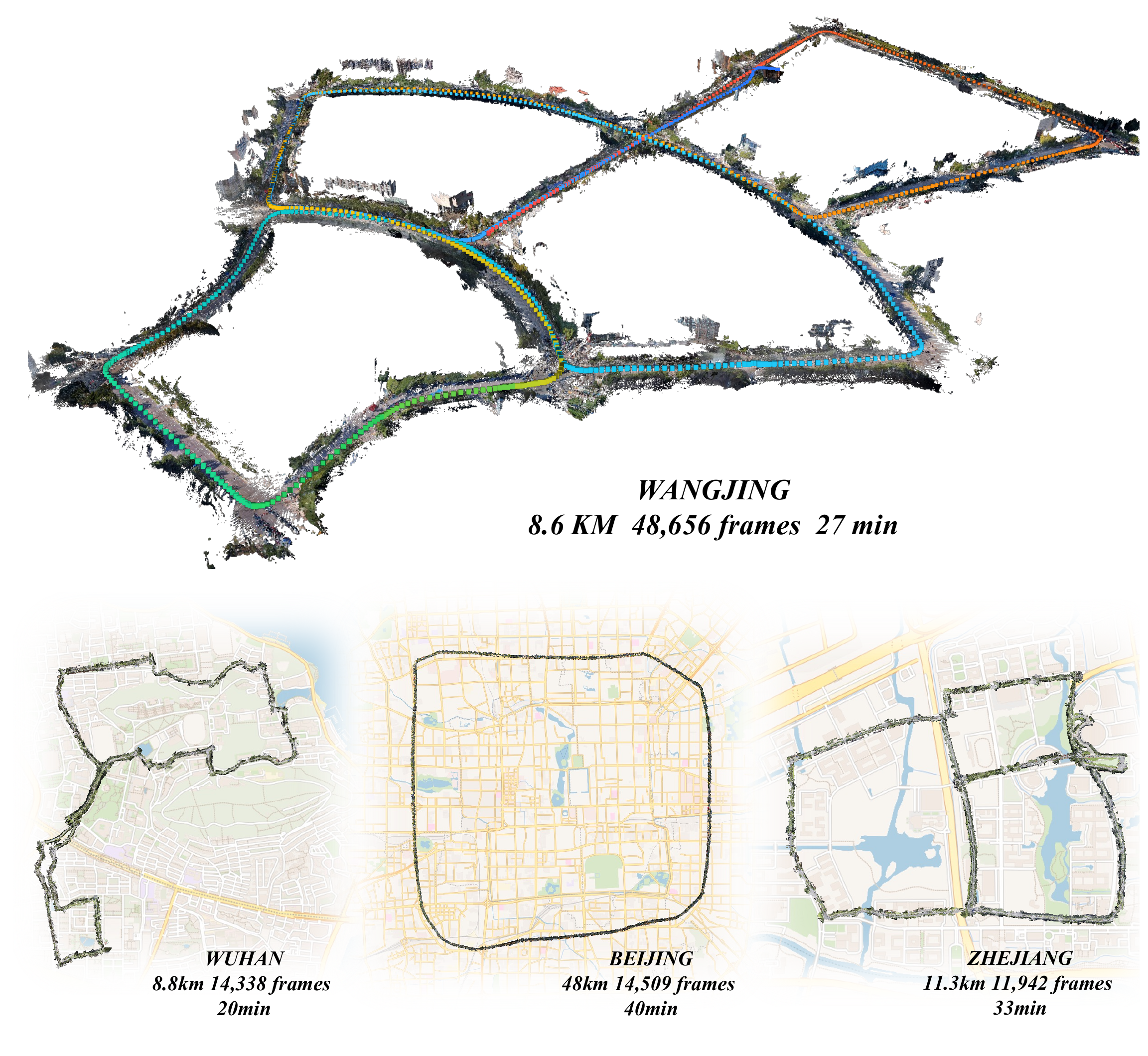

In one sentence: ABot-Recon reconstructs long video streams with a fixed 12-frame local context, composing current-frame geometry and adjacent relative poses into a global reconstruction without persistent learned long-range memory.

• 2026-09-25: Fine-tuning code is now on the train branch, with 18 data sources, mixing/EMA/validation/resume, and example configs. See the branch README to get started.
• 2026-09-16: Community port: The AXERA-TECH team has ported ABot-Recon to the Axera AX650N NPU, supporting both AXCL-based PCIe inference and on-device inference on AX650N boards. The release includes precompiled AX650N models, Docker images, and a web-based mapping service. Model files are available on Hugging Face. Thanks to the AXERA-TECH team for this hardware adaptation!
• 2026-08-31: Thanks to the Hugging Face team, an interactive ABot-Recon Demo is now available online. Try it out!

Long-horizon streaming reconstruction is often approached by adding increasingly elaborate mechanisms for retaining and fusing long-range state. ABot-Recon takes a deliberately local route. At each time step, it solves the same bounded prediction problem:

• cache KV features from the preceding 11 frames;
• predict a point map $P_i$ in the current camera coordinate system;
• estimate the adjacent relative pose $T_{i-1\leftarrow i}$; and
• recover the global trajectory and point cloud through sequential pose composition.

This design keeps model-state memory and per-frame computation independent of the elapsed sequence length. A lightweight motion-visual rotation refiner and composition-aware pose loss are used to limit drift when local poses are composed over long horizons.

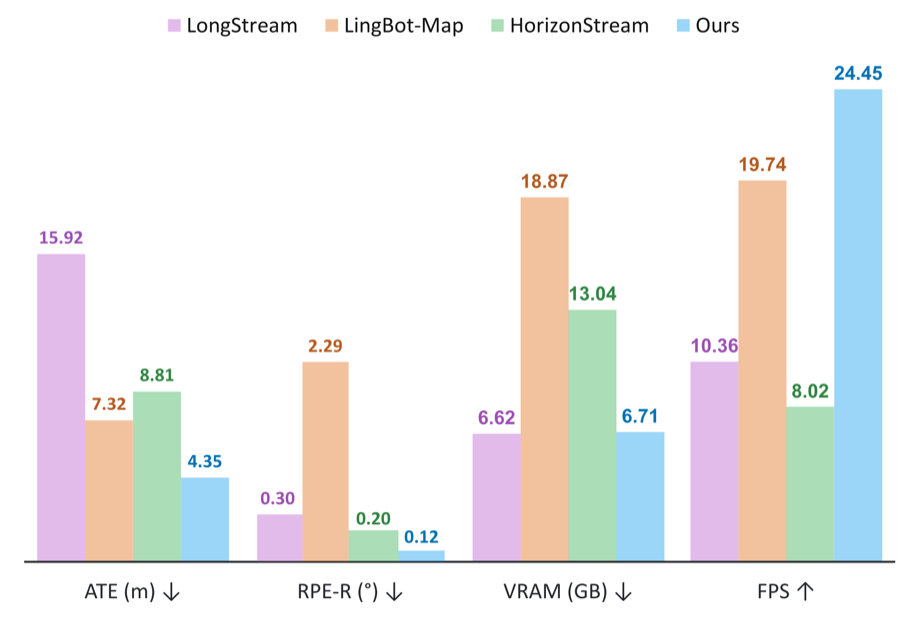

The full paper reports camera-pose results on KITTI, Oxford Spires, and VBR, together with dense reconstruction on 7Scenes, TUM-Dynamic, and Oxford Spires.

The released configuration targets Linux, Python 3.10 or later, PyTorch 2.5.1, and CUDA 12.1. The release environment was validated on NVIDIA A100, while the paper's runtime benchmark uses an NVIDIA H100.

conda create -n abot-recon python=3.11 -y
conda activate abot-recon

pip install torch==2.5.1 torchvision==0.20.1 \
  --index-url https://download.pytorch.org/whl/cu121
pip install -e .

ABot-Recon uses paged KV-cache operators from FlashInfer when they are available and falls back to PyTorch SDPA otherwise. Compiling cuRoPE further accelerates rotary position encoding.

pip install flashinfer-python
flashinfer show-config

cd abot_recon/modeling/pi3/models/curope
pip install ninja
python setup.py build_ext --inplace
cd -

The released checkpoint is available on Hugging Face and ModelScope. The Python API and demo download it automatically from Hugging Face and reuse the local cache. For offline inference, download the checkpoint manually and place it at:

checkpoints/abot_recon.safetensors

The base model requires neither loop-closure dependencies nor loop assets. Input images are sorted lexicographically, so frame names should be zero-padded (for example, 000001.jpg, 000002.jpg, ...).

python demo.py \
  --image-dir examples/images \
  --output-dir outputs/demo \
  --attention-backend auto \
  --no-loop-closure

This minimal example performs one causal pass and writes the raw camera trajectory, adjacent relative poses, local point maps, confidence maps, and run metadata. See Optional loop closure for trajectory refinement on sequences with revisited regions.

Useful output controls:

from pathlib import Path
from abot_recon import ABotRecon

images = sorted(Path("examples/images").glob("*.jpg"))

model = ABotRecon.from_pretrained(
    "acvlab/ABot-Recon",
    device="cuda",
    attention_backend="auto",
    loop_closure=False,
)

result = model.infer(images)

trajectory = result.camera_poses
relative_poses = result.relative_poses
local_points = result.local_points
confidence = result.confidence

The checkpoint is downloaded once and then loaded from the Hugging Face cache. For offline inference, replace the repository ID with a local checkpoint path.

Set output_world_points=True to return point maps transformed by the final trajectory. Use dense_output_indices when dense geometry is needed for only a subset of frames.

The learned model does not depend on loop closure. When a sequence contains useful revisits, the optional backend retrieves candidate frame pairs with DINOv2-SALAD descriptors, predicts relative-pose constraints with ABot-Recon, and refines the trajectory through sparse pose-graph optimization.

Install the optional dependencies and download the retrieval checkpoints:

pip install -e ".[loop]"
python scripts/download_loop_assets.py --output-dir checkpoints/loop

Expected files:

checkpoints/
├── abot_recon.safetensors
└── loop/
    ├── dino_salad.ckpt
    └── dinov2_vitb14_pretrain.pth

Run inference with loop closure:

python demo.py \
  --image-dir examples/images \
  --output-dir outputs/demo_loop \
  --attention-backend auto \
  --loop-closure

When loop closure is enabled, camera_poses stores the refined trajectory, while camera_poses_noloop preserves the raw streaming prediction.

The exact set of files follows the selected output options:

outputs/demo/
├── camera_poses.npy
├── relative_poses.npy
├── camera_poses_noloop.npy
├── relative_poses_noloop.npy
├── camera_poses_loop.npy       # only with loop closure
├── relative_poses_loop.npy     # only with loop closure
├── local_points.pt             # enabled by default
├── world_points.pt             # with --save-world-points
├── colors.pt                   # RGB aligned with saved point maps
├── confidence.pt               # enabled by default
├── confidence_mask.pt          # enabled by default
└── metadata.json

Local point maps remain in their corresponding camera coordinate systems. World points are generated using the final selected trajectory.

python scripts/export_reconstruction_ply.py \
  --poses outputs/demo/camera_poses.npy \
  --points outputs/demo/local_points.pt \
  --colors outputs/demo/colors.pt \
  --output outputs/demo/reconstruction.ply \
  --bev-output outputs/demo/trajectory_bev.png

This creates an RGB point-cloud PLY and a separate BEV trajectory PNG.

Camera-pose and dense-reconstruction protocols are maintained on the eval branch:

git switch eval

That branch documents dataset preparation, third-party checkpoints, benchmark commands, and metric aggregation. Dense reconstruction is evaluated without loop closure to match the paper protocol.

pytest -q

CUDA-specific and real-checkpoint tests are available separately:

ABOT_RECON_REQUIRE_CUROPE=1 pytest -q tests/test_curope_parity.py

ABOT_RECON_CHECKPOINT=checkpoints/abot_recon.safetensors \
ABOT_RECON_IMAGE_DIR=examples/images \
ABOT_RECON_DEVICE=cuda \
pytest -q tests/integration/test_real_checkpoint.py

• Training code and recipes (to be released by September 30)
• Public model checkpoint
• Inference and evaluation code

@misc{han2026revisitinglocalcontextlonghorizon,
      title={Revisiting Local Context for Long-Horizon Streaming 3D Reconstruction},
      author={Jiarong Han and Jincheng Xiong and Yuzhou Liu and Linzhe Shi and Changjie Wu and Ning Guo and Mu Xu and Hang Zhang and Ming Qian},
      year={2026},
      eprint={2608.27529},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2608.27529},
}

Source code is released under the Apache License 2.0. Model weights are governed by MODEL_LICENSE.md, and third-party components are documented in THIRD_PARTY_NOTICES.md.

Before using the model, please review the Model Usage Guidelines.

ABot-Recon builds on Pi3 and draws inspiration from CroCo, DUSt3R, DINOv2, SALAD, FlashInfer, LingBot-Map, HorizonStream, and LongStream. We thank their authors and contributors.

We would also like to express our sincere gratitude to Zengye Ge, Hongyu Pan, Zhongxu Sun, Bentao Wang, Yuting Xu, Tianjian Ouyang, Haoming Yu, Chuzi Chen, and Zhiyang Zhang for their valuable support and contributions to this project.
