brook

Self-hosted TCP / UDP / HTTP(S) / WebSocket tunnels with a Web management panel

中文文档 | English (Docs) | Official Website | Quick Start | FAQ

g-brook/brook is a self-hosted network tunnel written in Go. It connects services behind NAT to a server you control and supports TCP, UDP, HTTP(S), and WebSocket tunnels through a Web management interface.

• 🚀 Blazing Fast Performance: High-concurrency architecture based on Go routines, with low latency and low resource consumption.
• 🛡️ All-around Compatibility: Supports SSH, HTTP/HTTPS, MySQL, Redis, RDP, and almost all mainstream application protocols.
• 🎨 Visual Management: Built-in modern Web panel for one-click initialization, real-time traffic monitoring, and connection status.
• 🔗 Versatile Protocols: Native support for TCP / UDP / HTTP(S) / WebSocket tunnels, easily handling various network environments (including CDN and firewall restrictions).
• 🛠️ Minimal Configuration: Only one JSON file needed, with auto-reconnection for worry-free operation.
• 💻 Cross-platform Support: Pre-compiled packages for Linux, macOS (Intel/M-series), and Windows (x64/ARM64).

Click to expand and view management interface screenshots

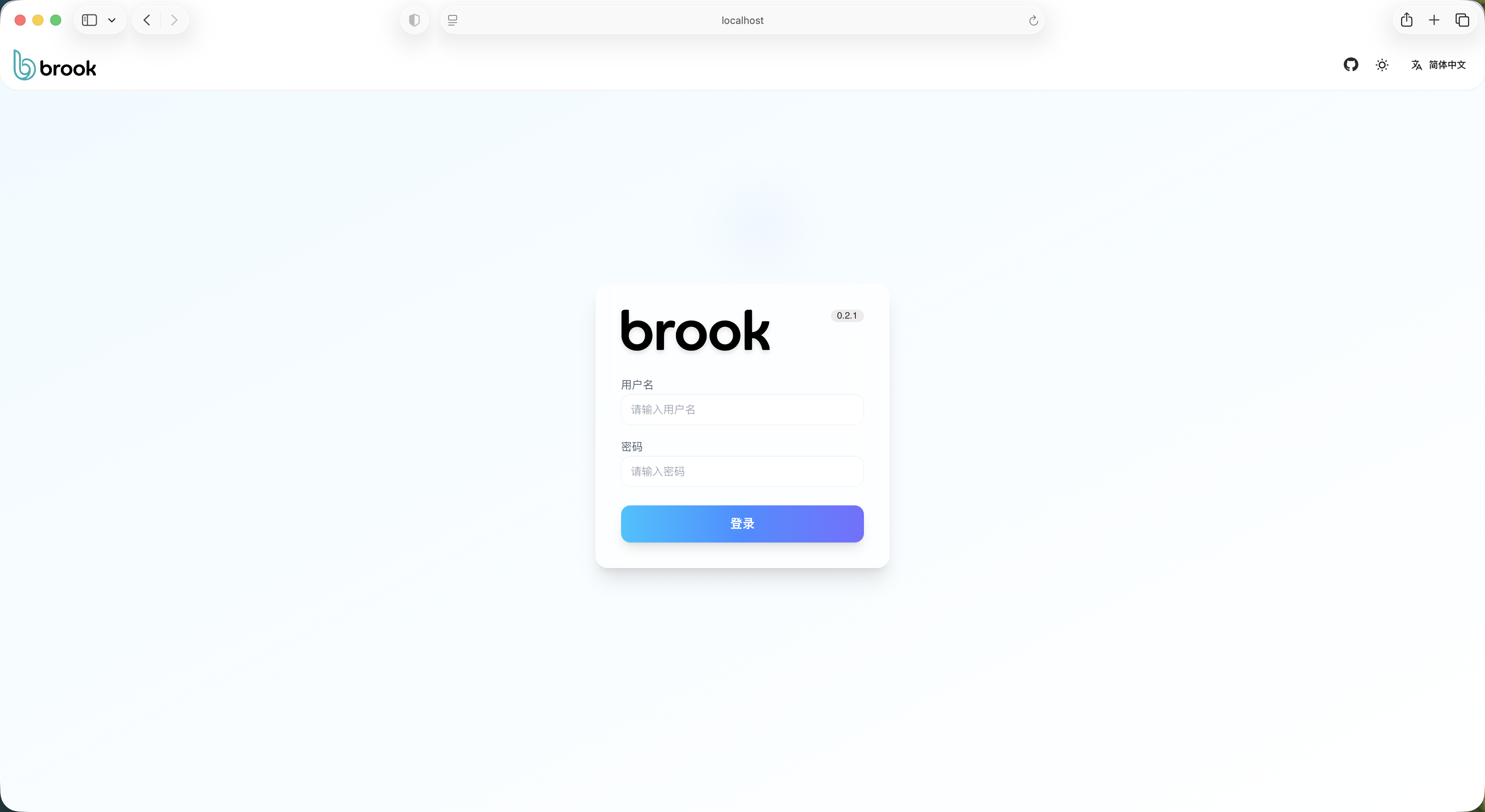

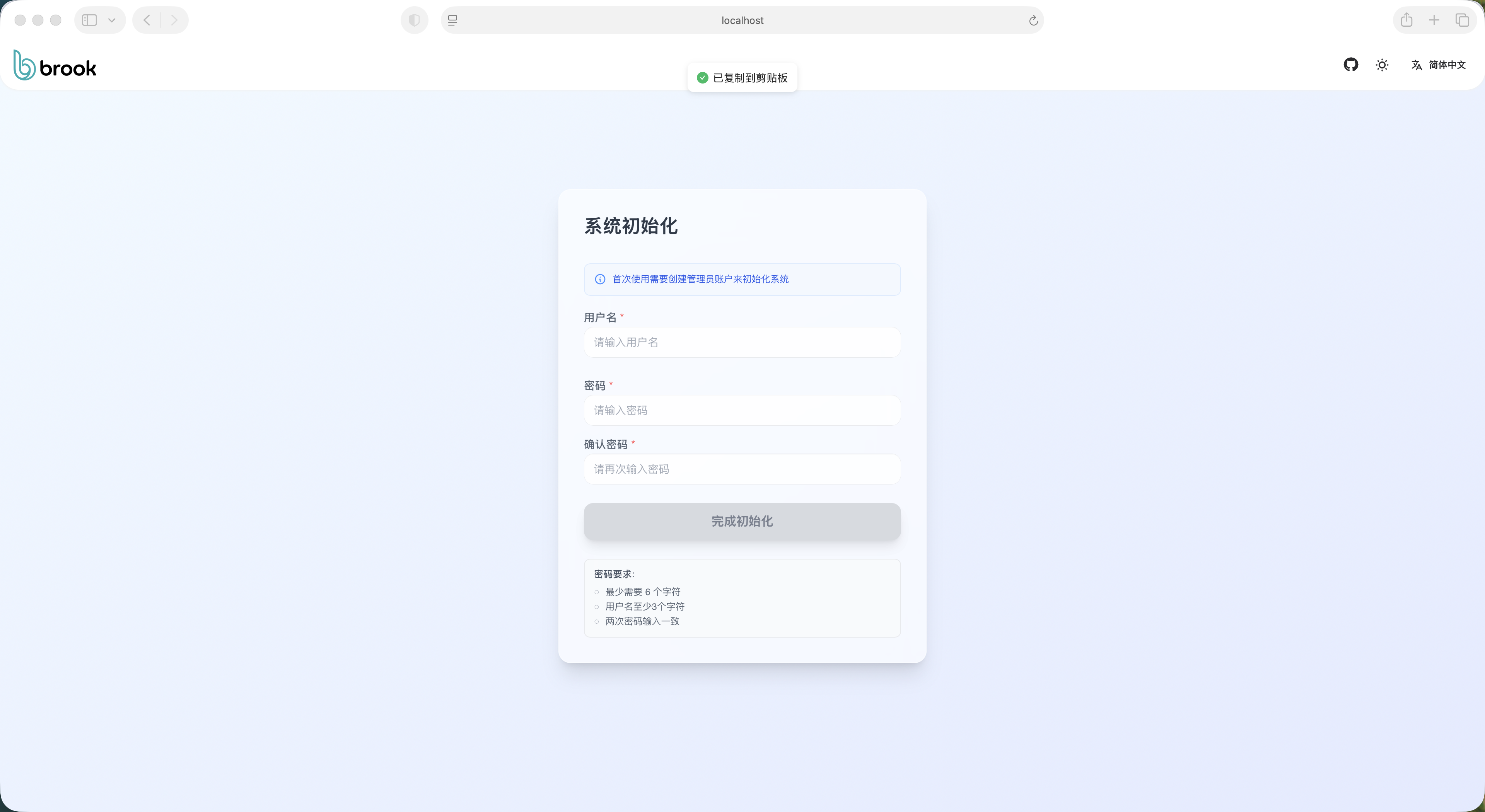

Initialization Wizard	Secure Login

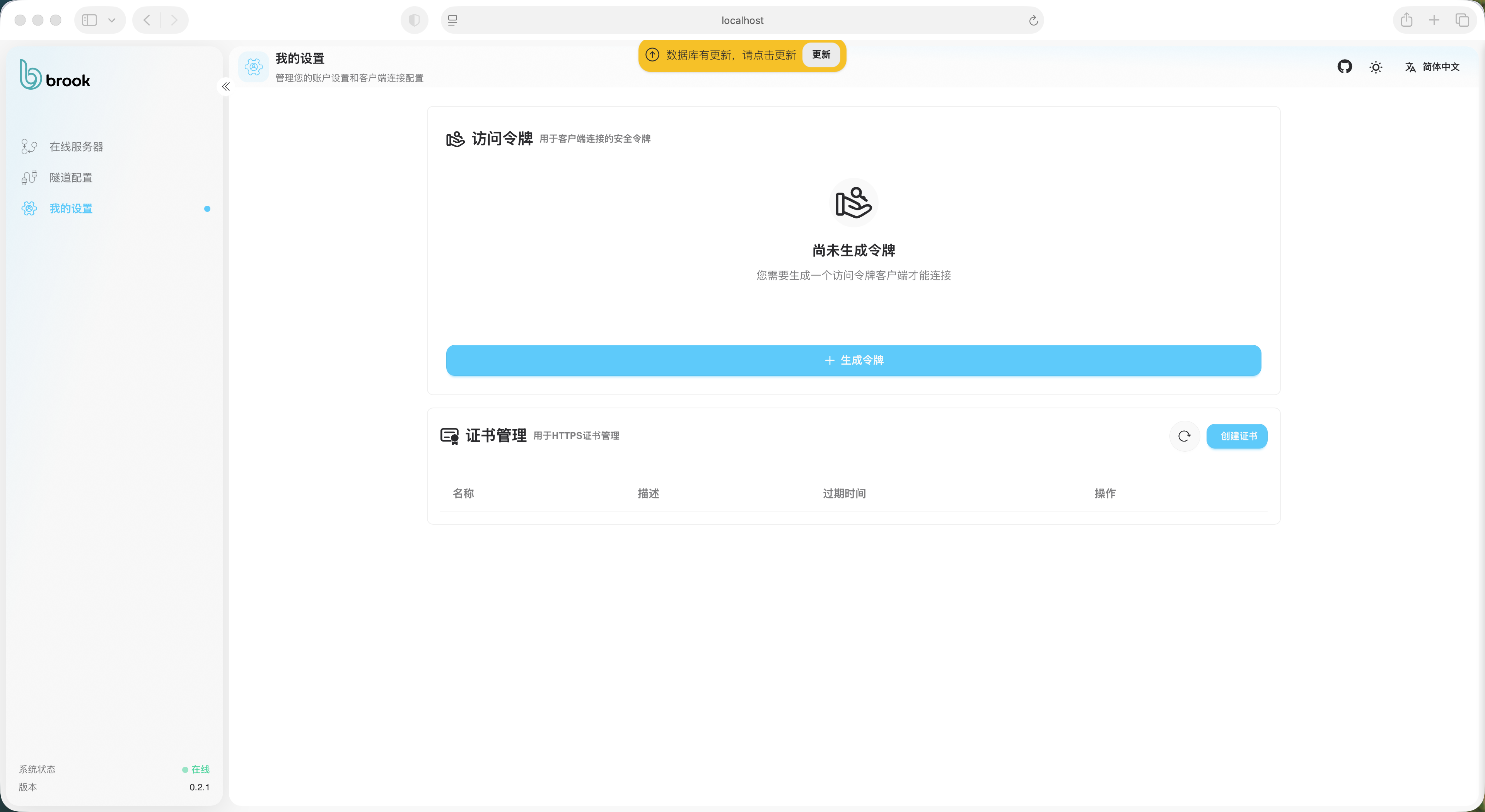

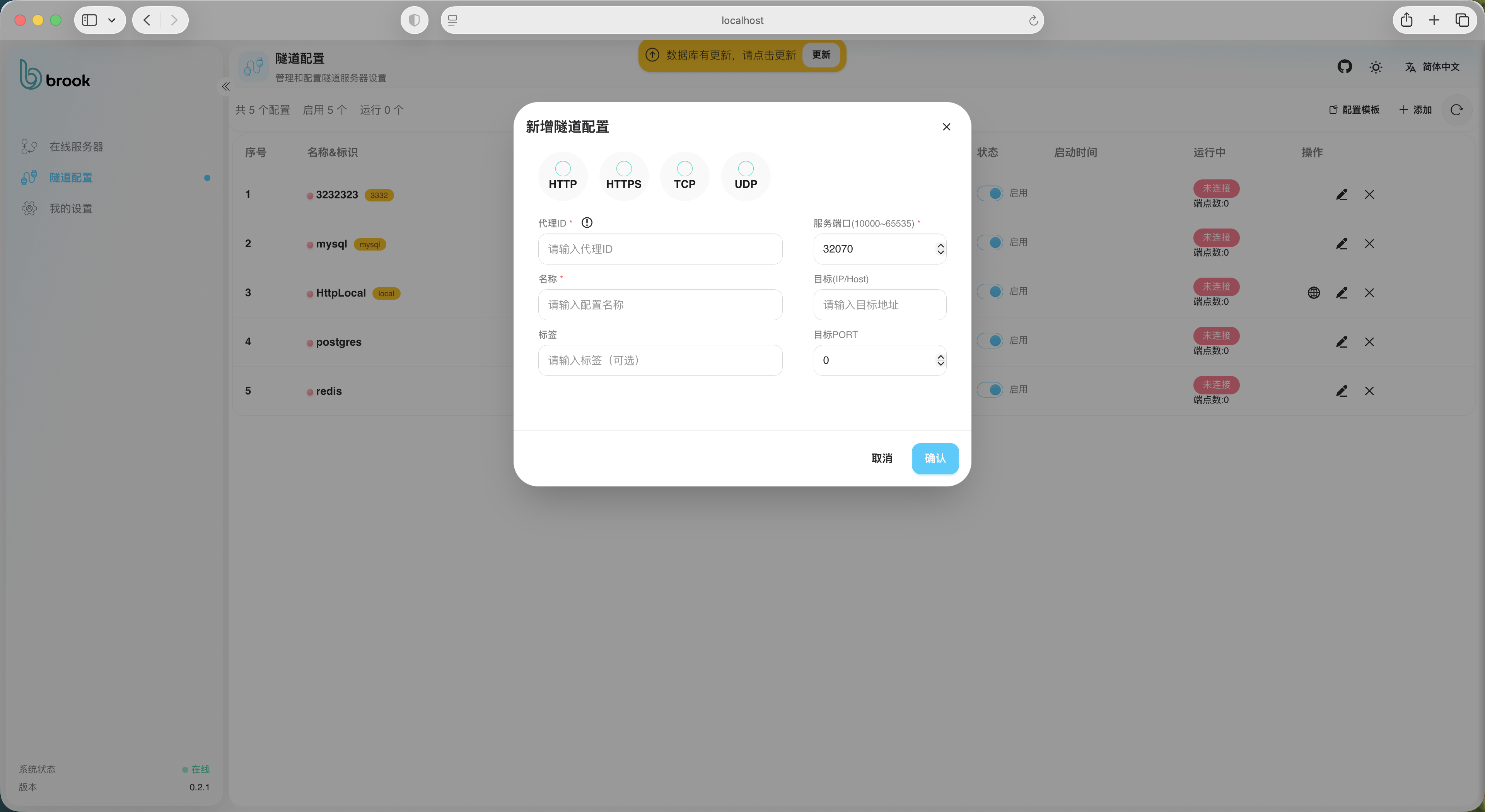

Token Management	Tunnel Configuration

bash -c "$(curl -fsSL https://www.gbrook.cc/install.sh)"

1. Download and Extract: Download the brook-sev for your platform from GitHub Releases.
2. Prepare Configuration (server.json):

   {
     "enableWeb": true,
     "webPort": 8000,
     "serverPort": 8909,
     "tunnelPort": 8919,
     "logger": { "logLevel": "info", "logPath": "./", "outs": "file" }
   }

3. Start Service:

   ./brook-sev -c ./server.json

4. Access Panel: Open your browser and visit http://your-ip:8000/index for initialization.

1. Get Token: Generate it in the Web management backend.
2. Prepare Configuration (client.json):

   {
     "serverHost": "your-server-ip",
     "serverPort": 8909,
     "token": "YOUR_GENERATED_TOKEN",
     "tunnels": [
       { "type": "tcp", "destination": "127.0.0.1:80", "proxyId": "web-proxy-1" }
     ]
   }

3. Start Client:

   ./brook-cli -c ./client.json

On Linux distributions with systemd, Brook provides built-in service management commands. The first time you run start, it will automatically create the unit file under /etc/systemd/system/ and then start the service.

Server:

sudo ./brook-sev start -c ./server.json
sudo ./brook-sev restart
sudo ./brook-sev stop
sudo ./brook-sev status
./brook-sev version

Client:

sudo ./brook-cli start -c ./client.json
sudo ./brook-cli restart
sudo ./brook-cli stop
sudo ./brook-cli status
./brook-cli version

• Foreground (run in console): open cmd in the extracted directory and run brook-sev.exe -c server.json / brook-cli.exe -c client.json
• Console helper: use run.bat to launch and keep the console window open
• Background mode: brook-sev.exe start / brook-cli.exe start (then use restart / stop / status / version)

# Frontend Build
cd portal/server/ && npm install && npm run build

# Server/Client Build
cd scmd/ && bash build.sh
cd ccmd/ && bash build.sh

This project is open-sourced under the Apache License 2.0 agreement.

If Brook helps you, please give it a ⭐ Star!
