A real-time network connection monitoring tool built with Rust and GTK4, displaying active connections with live I/O statistics in a modern graphical interface.

• Real-time monitoring: Continuously monitors active network connections
• I/O statistics: Shows live upload/download rates for each connection
• Process identification: Displays the program and PID associated with each connection
• Process actions: Right-click a row to copy its value/command or to kill the process that owns the connection (Terminate or Force Kill, with confirmation)
• Persistent selection: The selected row keeps its highlight across refreshes and is shown in the status strip
• Modern GTK4 UI: Clean, responsive graphical interface with Libadwaita styling
• Terminal UI (TUI): Interactive terminal interface with the same monitoring capabilities
• Address resolution: Simplifies common addresses (localhost, any, mDNS)
• Connection filtering: Filters out localhost connections for cleaner output
• GNOME integration: Proper WM class support for dock pinning and desktop integration
• Dual installation: Supports both user-local and system-wide installation
• Robust error handling: Comprehensive error recovery with clear setup guidance
• Performance optimized: Process caching and layout caching for improved responsiveness

• Rust 1.70+ (2021 edition)
• GTK4 development libraries
• Libadwaita development libraries
• Linux system with /proc filesystem
• Linux 5.8+ (for eBPF granular capabilities)
• Nightly Rust and bpf-linker (for eBPF compilation)

sudo apt update
sudo apt install libgtk-4-dev libadwaita-1-dev

sudo dnf install gtk4-devel libadwaita-devel

1. Clone the repository:

git clone <repository-url>
cd network-monitor

2. Install locally (no sudo required):

./scripts/install.sh

3. Or install system-wide (requires sudo):

sudo ./scripts/install.sh

The installation script will:

• Build both GTK4 and TUI binaries (debug for local, release for system-wide)
• Install binaries to ~/.local/bin/ (local) or /usr/local/bin/ (system-wide)
• Install desktop file with proper WM class for GNOME dock pinning
• Install icons to appropriate icon directories
• Update icon cache and desktop database
• Ensure the application can be pinned to GNOME dock/dashboard

1. Clone the repository:

git clone <repository-url>
cd network-monitor

2. Build and run:

cargo run

Or build in release mode:

cargo build --release
./target/release/network-monitor

1. Clone the repository:

git clone <repository-url>
cd network-monitor

2. Build and run the TUI:

cargo build --bin nmt
./target/debug/nmt

Or build in release mode:

cargo build --release --bin nmt
./target/release/nmt

Local installation removal:

./scripts/uninstall.sh

System-wide removal (requires sudo):

sudo ./scripts/uninstall.sh

The uninstallation script will remove the binary, desktop file, and icons from the appropriate locations and update all relevant caches.

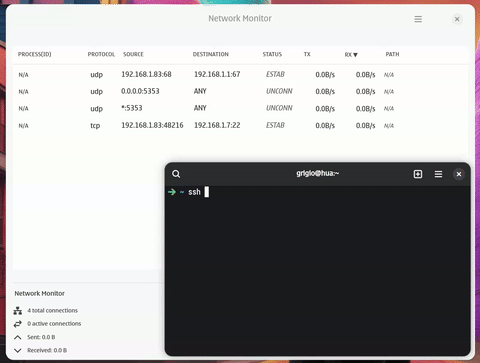

Launch the network monitor application:

cargo run

The application will open a GTK4 window displaying:

• Process(ID): Process name and PID with accurate socket-to-process mapping
• Protocol: TCP/UDP protocol
• Source: Local endpoint (resolved to readable format)
• Destination: Remote endpoint (resolved to readable format)
• Status: Connection state (ESTABLISHED, LISTEN, etc.)
• TX: Upload rate calculated from process I/O statistics
• RX: Download rate calculated from process I/O statistics
• Path: Full command path and arguments from /proc/[pid]/cmdline

Row actions

• Left click: select a row (also shown in the bottom strip)
• Right click: open the context menu with Copy Value, Copy Command and Kill "process" (PID), which asks whether to Terminate (SIGTERM) or Force Kill (SIGKILL)
• Delete: kill the currently selected row (same confirmation dialog)
• Ctrl+C: copy the cell content
• Refresh button in the header bar: update immediately (the list also refreshes every 3s)

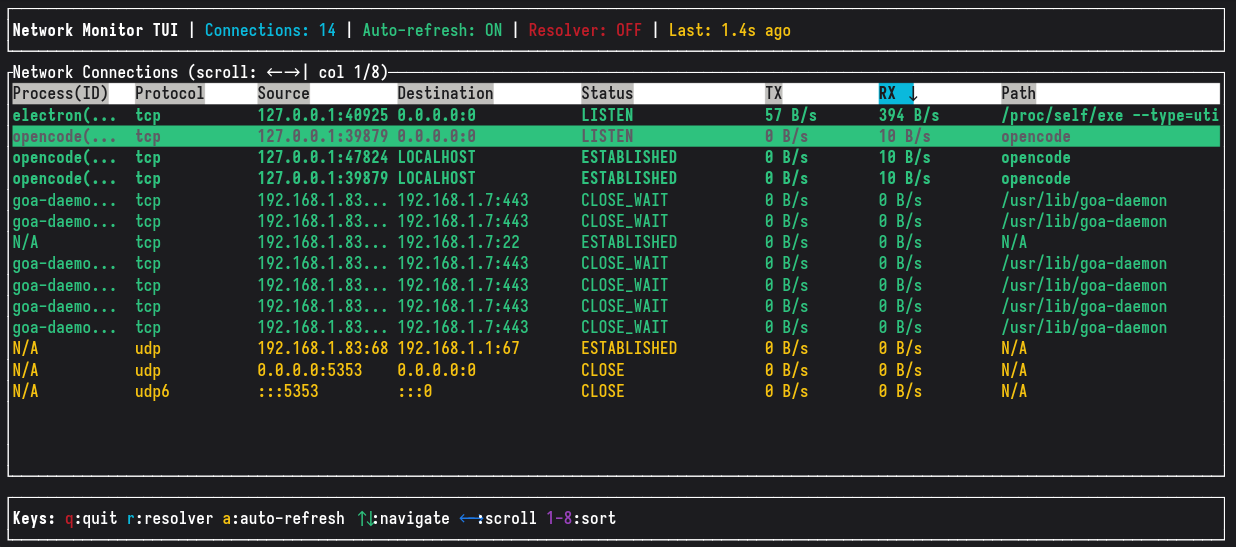

Launch the terminal interface:

cargo run --bin nmt

The TUI provides the same monitoring capabilities in an interactive terminal interface:

Key Controls:

• q - Quit the application
• r - Toggle hostname resolution
• R - Refresh connections manually
• a - Toggle auto-refresh (2-second intervals)
• ↑/↓ - Navigate through connections
• ←/→ - Scroll table horizontally
• k / right click - Open the kill menu for a row (Terminate / Force Kill / Cancel)
• 1-8 - Sort by columns (Process(ID), Protocol, Source, Destination, Status, TX, RX, Path)

Mouse: left click selects a row, right click selects it and opens the kill menu.

Features:

• Real-time connection monitoring with auto-refresh
• Sortable columns with visual indicators
• Horizontal scrolling for wide tables
• Smart column sizing - last column gets full remaining width
• Color-coded protocols (TCP/TCP6 in green, UDP/UDP6 in yellow)
• Active connection highlighting
• Process and PID information
• Live I/O rate display
• Same column order as GTK4 version for consistency

Common addresses are simplified for readability:

• 0.0.0.0:* or *:* → ANY
• 127.0.0.1:* or [::1]:* → LOCALHOST
• 224.0.0.251:* → MDNS

The app uses kernel-level kprobes (tcp_v4_connect, tcp_v6_connect, tcp_close, inet_csk_accept) instead of polling /proc/net. This provides:

• Event-driven: Sub-millisecond event delivery, no polling overhead (~1-3% CPU)
• Direct PID: Captured at probe point via bpf_get_current_pid_tgid(), no inode scanning
• Short-lived connections: Never missed between poll intervals

The eBPF backend provides event-driven connection monitoring with lower overhead and real-time events, compared to the default /proc/net polling approach. It can capture short-lived connections that polling might miss.

Prerequisites:

rustup toolchain install nightly
cargo install bpf-linker

Build and run:

cargo build

Run as normal user (kernel 5.8+ required):

Grant the required Linux capabilities to the binary once:

sudo setcap cap_bpf,cap_net_admin,cap_perfmon+ep target/debug/network-monitor
./target/debug/network-monitor

Or for the TUI version:

sudo setcap cap_bpf,cap_net_admin,cap_perfmon+ep target/debug/nmt
./target/debug/nmt

For release builds, adjust the path accordingly:

sudo setcap cap_bpf,cap_net_admin,cap_perfmon+ep target/release/network-monitor

The app will exit with a setup message if eBPF is unavailable (missing capabilities or unsupported kernel).

• GTK4: Modern cross-platform GUI framework
• Libadwaita: GNOME-style UI components
• Tokio: Async runtime for concurrent operations
• Aya + eBPF: Kernel-level connection tracing with kprobes for real-time events
• Direct PID: Process identification via bpf_get_current_pid_tgid() at the probe point
• System calls: Direct /proc/[pid]/io reading for I/O statistics
• Error handling: Comprehensive error types with graceful recovery using thiserror
• Performance caching: UI layout caching for optimal performance
