A library for creating dynamic and static charts in Android apps.

Androidplot runs on Android 2.0 (API 5) and up, works equally well from Kotlin and Java, and can be used from Jetpack Compose via AndroidView. The core library is lightweight: its only dependency is the androidx.annotation jar, which every Android app already has, so it adds nothing else to your APK.

If you enjoy the lib, please rate us on codix.io!

Features:

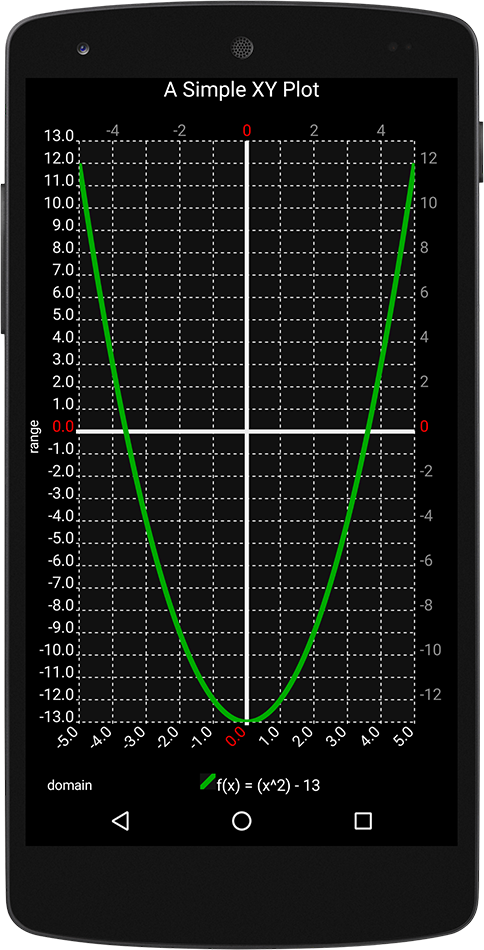

• Line Charts

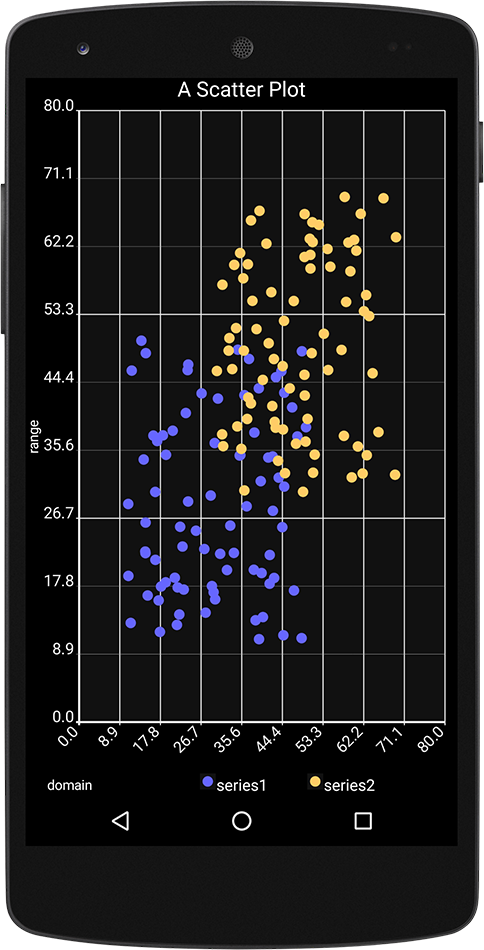

• Scatter Charts

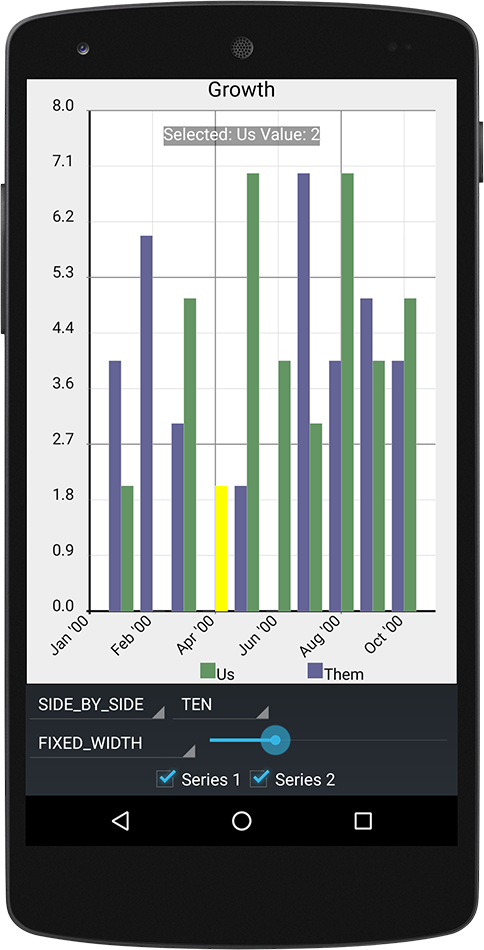

• Bar Charts

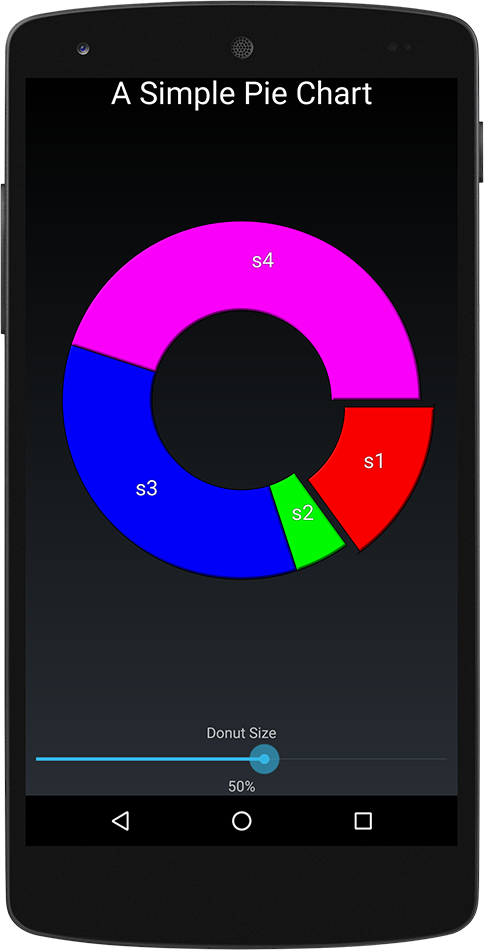

• Pie Charts

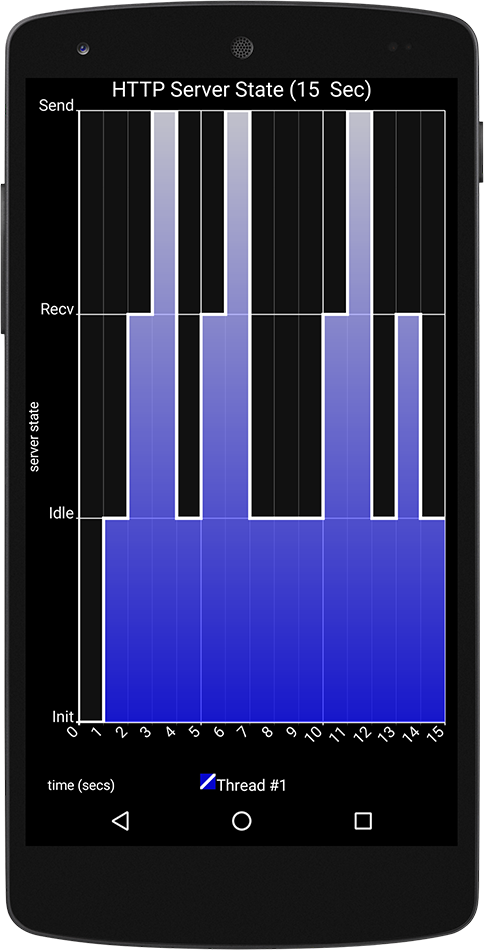

• Step Charts
• Candlestick Charts

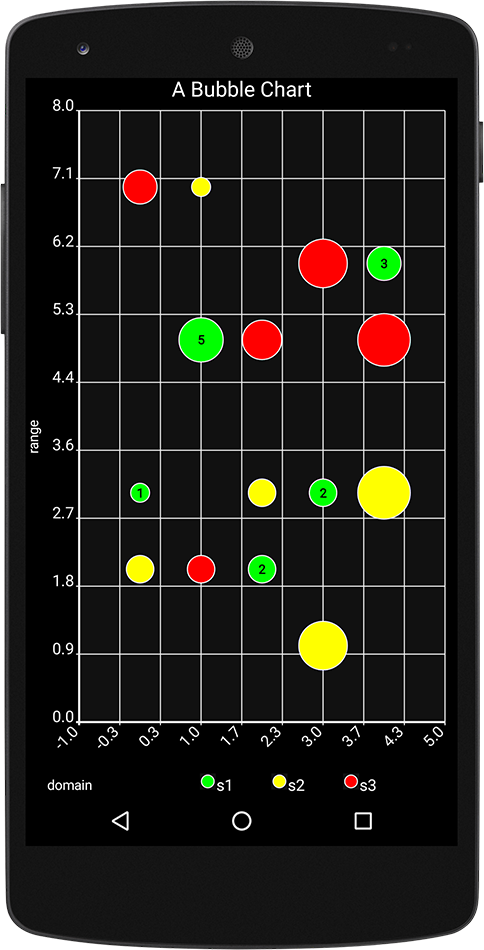

• Bubble Charts
• Dynamic plots
• Pan & Zoom
• Background-thread rendering
• Large datasets (zoom-aware downsampling)
• Value markers & shaded regions
• XML styling & custom renderers

dependencies {
    implementation "com.androidplot:androidplot-core:1.6.0"
}

Then follow the Quickstart ⭐ to get your first plot on screen, or dive into the full documentation. Every push to master also publishes a snapshot build if you want to try unreleased changes.

The demo app showcases every plot type and feature, and its source is the best reference for how things fit together:

• Install it from Google Play
• Browse the source

• Website
• 🎥 Watch Androidplot get a cavity check at Google I/O 2018, where it stars in Effective ProGuard keep rules for smaller applications
• Bugs 🐜
• Release Notes
• Contributing Source Code

Technical questions should be posted using the androidplot tag on Stack Overflow. For everything else use the Google Groups forum.

Androidplot has been made available under the Apache 2.0 license. Source files carry an SPDX SPDX-License-Identifier: Apache-2.0 tag in place of a full license header; the full text is in LICENSE.md.
