HUB75 RGB LED Matrix Panel Library Using ESP32 DMA

Introduction
- Features
Hardware Compatibility
Getting Started
Usage & Configuration
Community & Acknowledgments

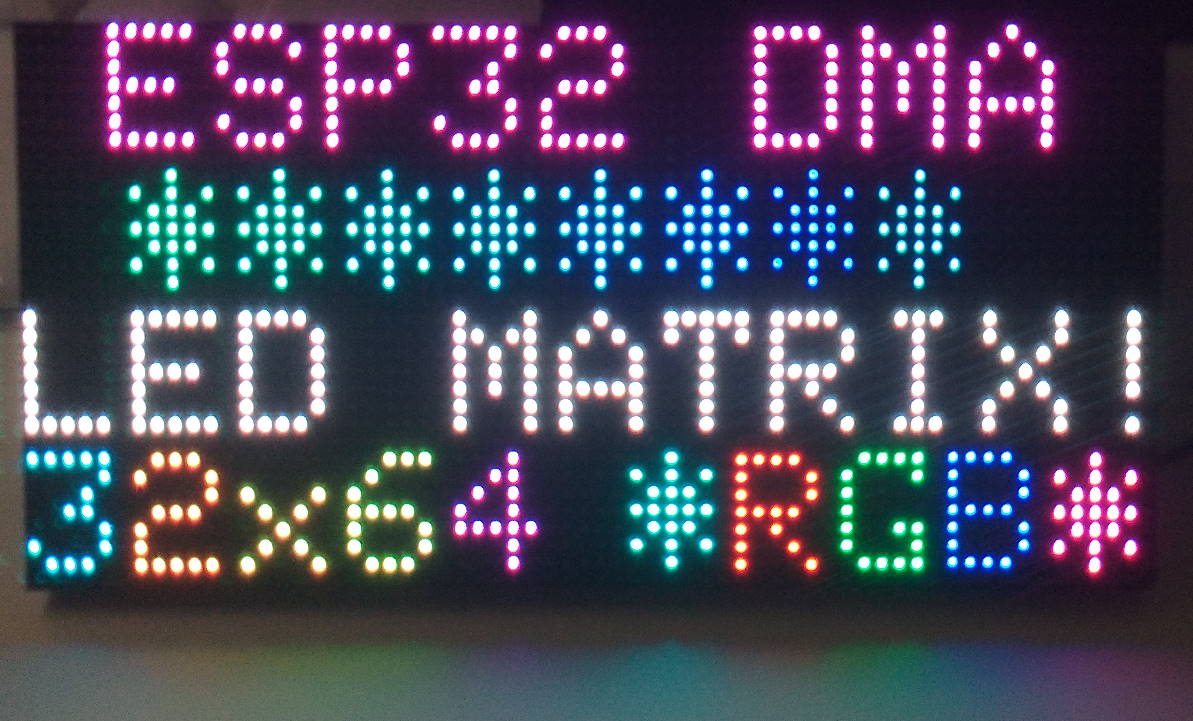

Introduction

An Arduino and ESP-IDF library for HUB75 and HUB75E RGB LED panels using the ESP32.
Works out of the box with standard HUB75 panels where two rows are updated at the same time (referred to as "two scan" panels in this document).
Also supports 1/4, 1/8 scan panels. For usage, please see the VirtualMatrixPanel example, or refer to instructions found in the various issues within this repository.
Uses the ESP32's hardware DMA ("LCD Mode") for high-speed output with low CPU usage.

Features

Low CPU usage — Pixel data streams directly using hardware DMA without using CPU resources.
Fast performance — Fast bitwise operations on the DMA buffer avoid pin toggling or blocking calls.
Full-screen BCM — Uses binary-code modulation across the entire matrix for smooth color depth and brightness.
Variable color depth — Supports up to 24-bit TrueColor depending on panel size and refresh rate.
Natural dimming — Includes CIE 1931 luminance correction for human eye brightness perception.
Adafruit GFX compatible — Works with Adafruit GFX, a simplified GFX implementation, or standalone without any GFX library.

Hardware Compatibility

Important Buying Advice: Before buying an LED matrix panel, ask the seller to confirm that the panel is NOT an "S-PWM" chip and uses standard shift-register driver chips such as the FM6124.

New panel driver chips are released frequently. Always check with the seller before purchasing.

Supported ESP32 Variants

ESP32 (Original module, such as ESP-WROOM-32 with ESP32-D0WDQ6 chip)
ESP32-S2
ESP32-S3

Note: RISC-V ESP32 variants (such as the ESP32-C3) are not supported because they lack the required hardware LCD mode.

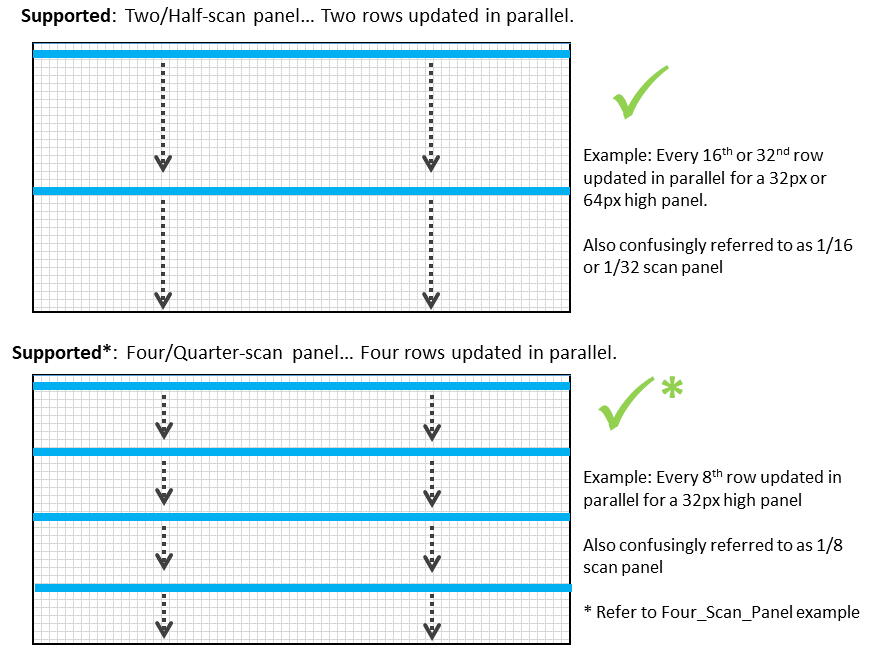

A quick introduction to LED Matrix Panel 'Scan' types

"Two scan" panels (two rows updated in parallel):
- 64x32 indoor panels (1/16 scan rate).
- 64x64 indoor panels (1/32 scan rate).
"Four scan" panels (four rows updated in parallel):
- 32x16 indoor panels (1/4 scan rate) using the method shown in the Four_Scan_Panel example.
- 128x64 panels with the SM5266P chip.
- 80x40 panels (1/10 scan rate) with 8-pixel column reversal. See 80x40 4-scan (ZIGZAG8).

For technical background on matrix panel hardware, read this SparkFun article.

Tested Driver Chips

The following driver chips work well with this library:

ICND2012
RUC7258
FM6126A, ICN2038S, FM6124 (See the PatternPlasma example)
SM5266P
DP3246 with SM5368 row registers

Unsupported Panels & Driver Chips

The following panels and driver chips are known to be NOT supported (there are likely many more):

S-PWM or PWM panels chipset based panels (e.g., RUL6024, MBI6024, HX6158SP, MBI5051, MBI5052, MBI5053, ICND2055CP). These panels work completely different are essentially their own framebuffers + PWM on chip, which is incompatible with this library.
SM1620B
Panels using RUL5358 or SHIFTREG_ABC_BIN_DE.
Panels using ICN2053 or FM6353. Use this library fork instead (see discussion).

If your panel is not supported, consider using the PxMatrix library.

Memory Requirements

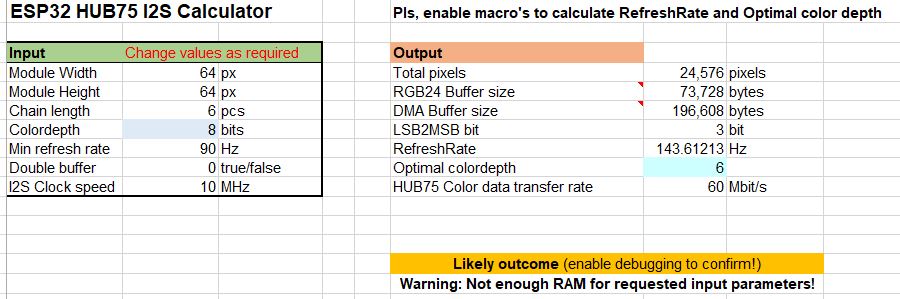

DMA buffers use the microcontroller's internal SRAM memory. Check the Memory Calculator to calculate expected SRAM usage.

ESP32-S3: You can store the DMA buffer in external PSRAM only if using Octal SPI PSRAM (e.g., ESP32-S3-N8R8). Max output frequency is limited to ~13 MHz to avoid image flickering. Do not use Quad-SPI (Q-SPI) PSRAM because it is too slow. See Build Options to enable PSRAM.
Standard ESP32 & ESP32-S2: You must use internal SRAM. You are limited to available internal RAM (~200 KB free memory), regardless of attached external PSRAM.

Important Hardware Notes

High-frequency DMA signals may cause Wi-Fi interference on some board designs.
The Adafruit MatrixPortal S3 can experience Wi-Fi radio issues with this library. It is not recommended if you need Wi-Fi. See discussion.

Getting Started

1. Library Installation

Open Arduino IDE, go to Library Manager, and install Adafruit_GFX.
Search for and install this library from the Library Manager.

PlatformIO: Add the library to the lib/ folder or add it to lib_deps inside platformio.ini. See Build Options and PlatformIO lib_deps.

2. Wiring the ESP32 to an LED Matrix Panel

Check default pin maps in default-pins.hpp under the platforms folder.

You can customize pin assignments in code:

// Change these pins as needed
#define R1_PIN 25
#define G1_PIN 26
#define B1_PIN 27
#define R2_PIN 14
#define G2_PIN 12
#define B2_PIN 13
#define A_PIN 23
#define B_PIN 19
#define C_PIN 5
#define D_PIN 17
#define E_PIN -1 // Required for 1/32 scan panels (e.g., 64x64px). Use any open pin, e.g., IO32
#define LAT_PIN 4
#define OE_PIN 15
#define CLK_PIN 16

HUB75_I2S_CFG::i2s_pins _pins={R1_PIN, G1_PIN, B1_PIN, R2_PIN, G2_PIN, B2_PIN, A_PIN, B_PIN, C_PIN, D_PIN, E_PIN, LAT_PIN, OE_PIN, CLK_PIN};
HUB75_I2S_CFG mxconfig(
	64, // Module width
	32, // Module height
	2, // Chain length
	_pins // Pin mapping
);
dma_display = new MatrixPanel_I2S_DMA(mxconfig);

Grounding: Connect at least one Ground (GND) pin on the HUB75 connector to an ESP32 GND pin to prevent visual artifacts.

Using Adapter Boards & Shields

Custom adapter PCBs make wiring easier:

Configuring Off-the-Shelf Boards (e.g., Adafruit MatrixPortal)

Find your board's pin numbers in the Adafruit Protomatter examples (e.g., doublebuffer_scrolltext.ino) and update your #define values.

Example for MatrixPortal S3:

Protomatter definition:

uint8_t rgbPins[]  = {42, 41, 40, 38, 39, 37};
uint8_t addrPins[] = {45, 36, 48, 35, 21};
uint8_t clockPin   = 2;
uint8_t latchPin   = 47;
uint8_t oePin      = 14;

Library config:

#define R1_PIN 42
#define G1_PIN 41
#define B1_PIN 40
#define R2_PIN 38
#define G2_PIN 39
#define B2_PIN 37
#define A_PIN  45
#define B_PIN  36
#define C_PIN  48
#define D_PIN  35
#define E_PIN  21
#define LAT_PIN 47
#define OE_PIN  14
#define CLK_PIN 2

HUB75_I2S_CFG::i2s_pins _pins={R1_PIN, G1_PIN, B1_PIN, R2_PIN, G2_PIN, B2_PIN, A_PIN, B_PIN, C_PIN, D_PIN, E_PIN, LAT_PIN, OE_PIN, CLK_PIN};

HUB75_I2S_CFG mxconfig(
  PANEL_RES_X,   // Module width
  PANEL_RES_Y,   // Module height
  PANEL_CHAIN,   // Chain length
  _pins          // Pin mapping
);

Using 64x64 Square Panels (HUB75E)

For 64x64 panels (HUB75E), you must assign a valid E_PIN and connect it to the E pin on the panel header.

3. Running a Test Sketch

Call begin() before drawing shapes, lines, or text.

Minimal example:

void setup() {
    dma_display->begin();
    dma_display->drawPixel(0, 0, dma_display->color565(255, 255, 255)); // Draw a white dot at top-left
}

void loop() {}

After verifying basic operation, test with the PIO Test Patterns example. This sketch displays test patterns to help identify flickering, ghosting, or pin mapping issues.

Usage & Configuration

Chaining Multiple Panels

Yes, panels can be connected together in sequence using HUB75 ribbon cables.

Horizontal Chaining: Connect panels end-to-end (e.g., two 64x32 panels for a 128x32 display). Update the chain length setting in mxconfig. See Pattern Plasma.
Grid Layouts: To chain four 64x32 panels into a 2x2 grid (128x64 display), see the VirtualMatrixPanel and AuroraDemo examples.

Resolutions above 128x64 may cause memory errors due to ESP32 internal SRAM limits.

Adjusting Panel Brightness

Default brightness is set to 128 (50%). Change brightness using setPanelBrightness(val) or setBrightness8(val).

Value range: 0 (off) to 255 (full brightness).

Example:

void setup() {
    Serial.begin(115200);
    dma_display->begin();
    dma_display->setBrightness8(192); // Set brightness (~75%)
    dma_display->clearScreen();
}

Build-Time Options

For IDEs supporting compile-time flags (such as PlatformIO or Eclipse), view the Build Options Document.

Latch Blanking

If pixels repeat horizontally (ghosting), adjust Latch Blanking using setLatBlanking(uint8_t v).

Latch blanking disables display output via OE during LAT pin transitions to hide row switching artifacts.

Range: 1 to 4 (default is 1). Higher values reduce overall display brightness.

Example:

dma_display->setLatBlanking(2);

Clock Phase

If pixels appear shifted by 1 pixel or show ghosting, change the clock edge mode. Some panels update on the rising clock edge; others update on the falling clock edge.

Default behavior is positive clock edge. To switch to negative clock edge, set:

mxconfig.clkphase = false;

See the Simple Test Shapes Example.

Power Requirements

A stable power supply is critical:

Solder a 1000 µF–2000 µF capacitor across the VCC and GND pins on the back of each panel to stabilize power spikes.
ESP32 outputs 3.3V signals. Some panels require 5V logic inputs. Use level shifters if panel inputs do not recognize 3.3V signals reliably.

Useful resources:

Community & Acknowledgments

Inspiration

This project was inspired by:

Projects Using This Library

Thanks & Acknowledgments

Brian Lough (YouTube) for code contributions, testing hardware, and suggestions.
Vortigont for performance optimizations and major code contributions.
Galaxy Man for donating 1/16 scan panels to help implement virtual display chaining.
Pipimaxi for donating an ESP32-S2 module, and Radu for donating an ESP32-S3 module.
Mark Donners (YouTube) for donating a 1/8 scan panel.
PaintYourDragon for ESP32-S3 DMA logic.

Support & Donations

This library is developed as a free open-source personal project. To support ongoing development or help fund hardware panel purchases, see this discussion thread or visit mrcodetastic on GitHub.

Music

An AI-generated song about this library: Listen on Suno 😊
