Zoomable is a Compose Multiplatform library that enables the content zoomable by pinch gesture, double-tap, tap-and-drag gesture, or mouse scroll wheel.

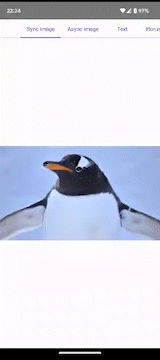

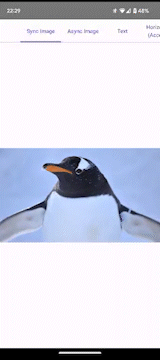

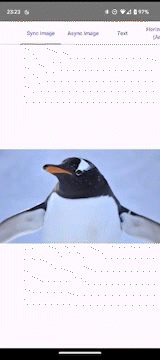

Pinch	Double-tap	Double-tap and drag

Zoomable provides a simple Modifier extension function Modifier.zoomable.

Here is the simplest sample code. You can make image zoomable by just adding one line code.

Image(
    painter = painterResource(id = R.drawable.penguin),
    contentDescription = null,
    modifier = Modifier.zoomable(rememberZoomState()),
)

Zoomable can be used in the following ways:

• combined with any composable components such as Image or Text
• combined with asynchronous image loading such as coil's rememberAsyncImagePainter
• used within a HorizontalPager or VerticalPager

Zoomable supports Android, iOS, macOS, Desktop, and Web (Wasm and JS).

• ✅: Supported
• *1: Compose desktop does not support multi-touch gestures.
• *2: Works, but not officially supported. Compose for macOS is experimental.
• *3: Works only with MouseWheelZoom.Enabled. Zooming with a modifier key (e.g. MouseWheelZoom.EnabledWithCtrlKey, the default) does not work because Compose for macOS does not report modifier key state.

API Reference🔎

Zoomable is available on Maven Central.

repositories {
    mavenCentral()
}

dependencies {
    implementation "net.engawapg.lib:zoomable:$version"
}

The latest version:

If your app targets macOS (native), add the following to gradle.properties, since Compose for macOS is experimental.

org.jetbrains.compose.experimental.macos.enabled=true

You can use Modifier.zoomable to make contents such as an image zoomable. The zoom state is managed in a ZoomState object that can be created via rememberZoomState. If contentSize is set, the range of offset will be optimized for the specified size.

val painter = painterResource(id = R.drawable.penguin)
val zoomState = rememberZoomState(contentSize = painter.intrinsicSize)
Image(
    painter = painter,
    contentDescription = "Zoomable image",
    contentScale = ContentScale.Fit,
    modifier = Modifier
        .fillMaxSize()
        .zoomable(zoomState),
)

You can use Modifier.zoomable with Coil's rememberAsyncImagePainter.

val painter = rememberAsyncImagePainter("https://example.com/image.jpg")
val zoomState = rememberZoomState(contentSize = painter.intrinsicSize)
Image(
    painter = painter,
    contentDescription = "Zoomable image",
    contentScale = ContentScale.Fit,
    modifier = Modifier
        .fillMaxSize()
        .zoomable(zoomState),
)

If you want to use AsyncImage, you need to call setContentSize when the image is successfully loaded.

val zoomState = rememberZoomState()
AsyncImage(
    model = "https://example.com/image.jpg",
    contentDescription = "Zoomable image",
    contentScale = ContentScale.Fit,
    onSuccess = { state ->
        zoomState.setContentSize(state.painter.intrinsicSize)
    },
    modifier = Modifier
        .fillMaxSize()
        .zoomable(zoomState),
)

By default, every time double tap is detected, zoomable modifier switches the scale between 1.0f and 2.5f.

To change the scale set for double-tap detection, call toggleScale with desired value in onDoubleTap callback.

val targetScale = 5.0f
zoomable(
    zoomState = zoomState,
    onDoubleTap = { position -> zoomState.toggleScale(targetScale, position) }
)

If you want to implement the logic to determine the scale value yourself, you can use the changeScale function. In the example below, the scale is switched in three steps.

zoomable(
    zoomState = zoomState,
    onDoubleTap = { position ->
        val targetScale = when {
            zoomState.scale < 2f -> 2f
            zoomState.scale < 4f -> 4f
            else -> 1f
        }
        zoomState.changeScale(targetScale, position)
    }
)

To disable double tap action, set empty function to onDoubleTap.

zoomable(
    zoomState = zoomState,
    onDoubleTap = {}
)

By default, one finger zoom action, tap followed by vertical drag, is enabled. If you want disable it, set false to enableOneFingerZoom.

zoomable(
    zoomState = zoomState,
    enableOneFingerZoom = false,
)

While a zoom gesture is in progress, the content can be scaled a little beyond its normal range, and springs back once the gesture ends. Pass a Bounce to rememberZoomState to configure how far it goes.

Both values are factors applied to the boundaries of the normal scale range, not absolute scale values. Note that the two are applied to different boundaries: lower is applied to the minimum scale, which is always 1.0, while upper is applied to maxScale.

val zoomState = rememberZoomState(
    maxScale = 5f,
    // Scale can reach 0.8 while shrinking and 6.0 while enlarging.
    bounce = Bounce(lower = 0.8f, upper = 1.2f),
)

By default, the content bounces while shrinking but not while enlarging (Bounce.Default). Use Bounce.None to disable bouncing altogether.

You can choose when to propagate scroll gestures to the parent Pager composable by specifying scrollGesturePropagation.

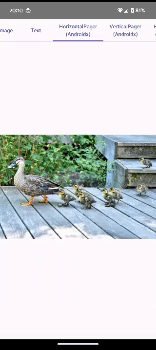

• ContentEdge: Scroll gesture is propagated when the content is scrolled to the edge and attempts to scroll further.

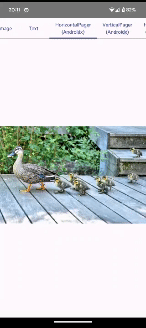

• NotZoomed: Scroll gesture is propagated when the content is not zoomed.

ContentEdge	NotZoomed

By default, zooming works by holding down the Ctrl key and operating the mouse wheel. This is intended to be used primarily with desktop and web, but it also works with Android and iOS. You can change the behavior by using the mouseWheelZoom argument of zoomable.

• Disabled disables zoom by mouse wheel operation.
• Enabled enables zoom by mouse wheel operation regardless of whether the modifier key is pressed.
• EnabledWithCtrlKey, EnabledWithShiftKey, EnabledWithAltKey, and EnabledWithMetaKey enable zoom by mouse wheel operation while holding down the modifier key.

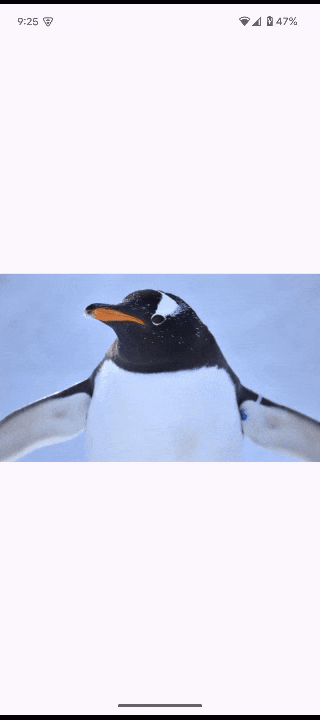

Modifier.snapBackZoomable allows you to zoom an image with a pinch gesture and automatically return it to its original size when you release all fingers. You can easily achieve Instagram-like behavior.

To zoom a component that itself scrolls, such as a LazyColumn or LazyRow, use zoomableWithScroll.

LazyColumn(
    modifier = Modifier.zoomableWithScroll(rememberZoomState())
) {
    items(100) { Text("Item $it") }
}

It can also be used with Modifier.verticalScroll or Modifier.horizontalScroll. In that case, put zoomableWithScroll before verticalScroll or horizontalScroll in the Modifier chain.

Column(
    modifier = Modifier
        .fillMaxSize()
        .zoomableWithScroll(rememberZoomState())
        .horizontalScroll(rememberScrollState())
) {
    repeat(100) { Text("Item $it") }
}

You can try sample app that contains following samples.

• Standard Image composable (source)
• Asynchronous image loading using Coil library (source)
• Image on HorizontalPager (source)
• Snap back zoom (source)
• LazyColumn (source)
• Row with Modifier.horizontalScroll (source)
