Generate editable Draw.io diagrams from natural language or reference images in seconds, optimized for research, documentation, and presentations.

• Demo: https://smart-drawio-next.vercel.app/
• Note: the hosted version requires your own API key

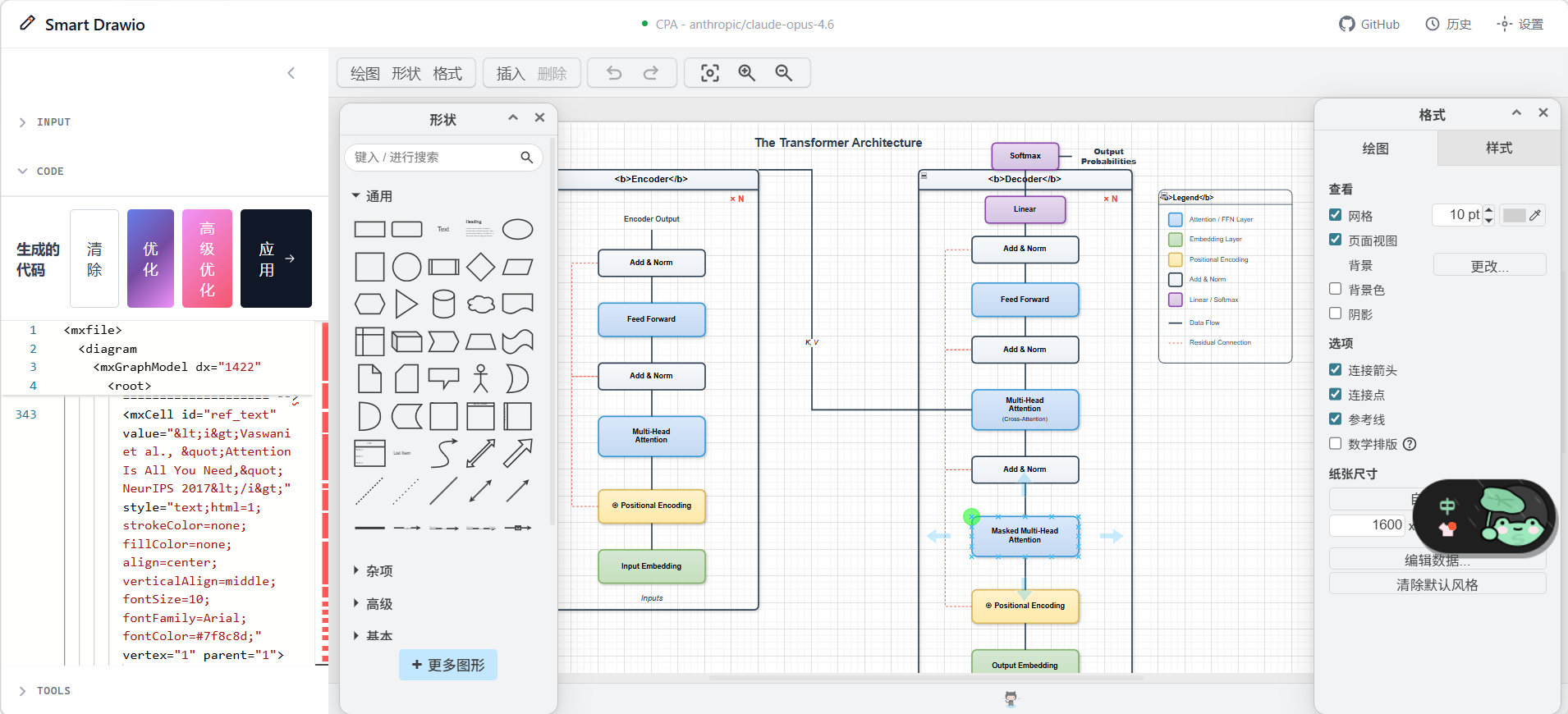

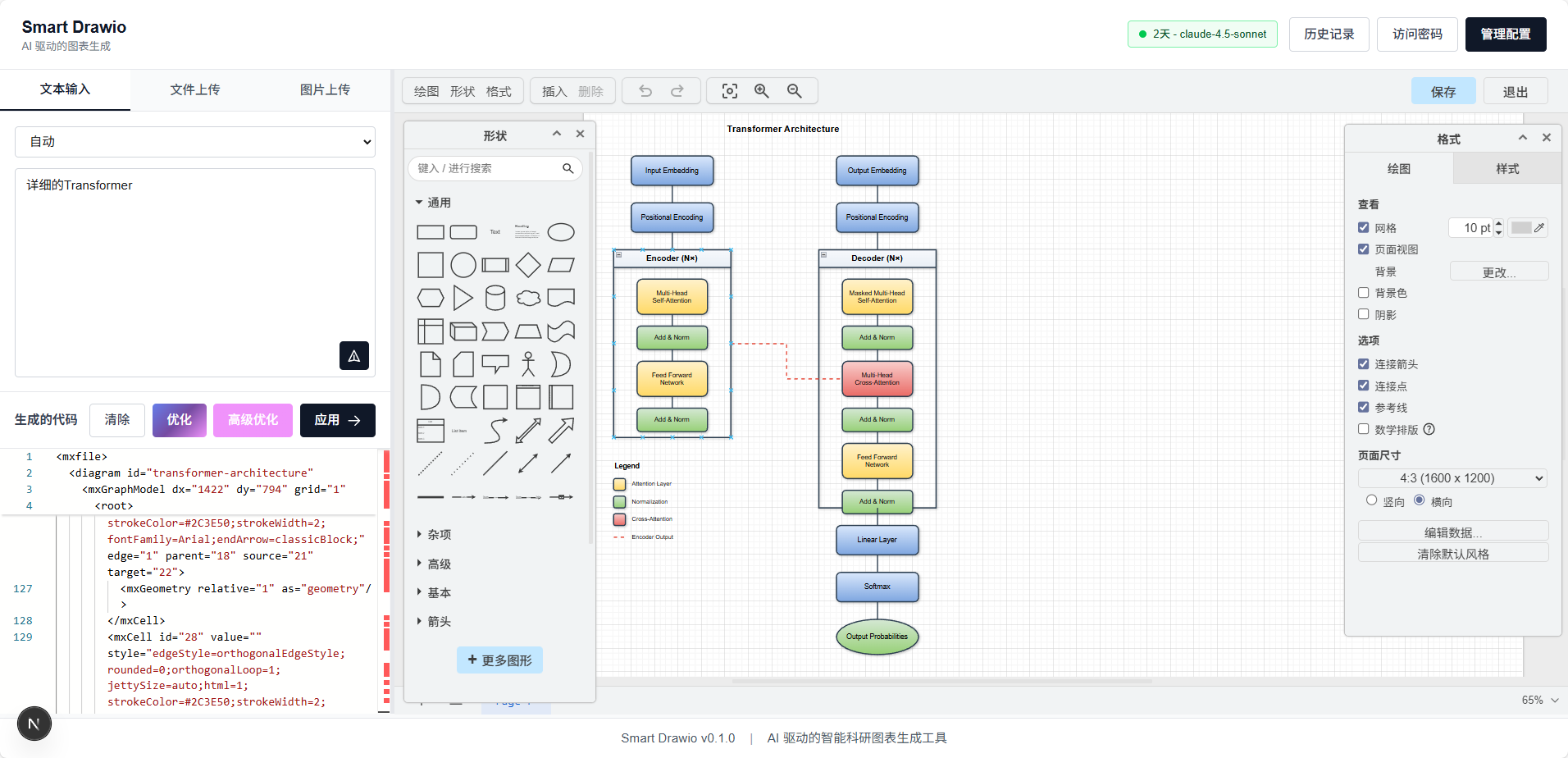

Home	Transformer

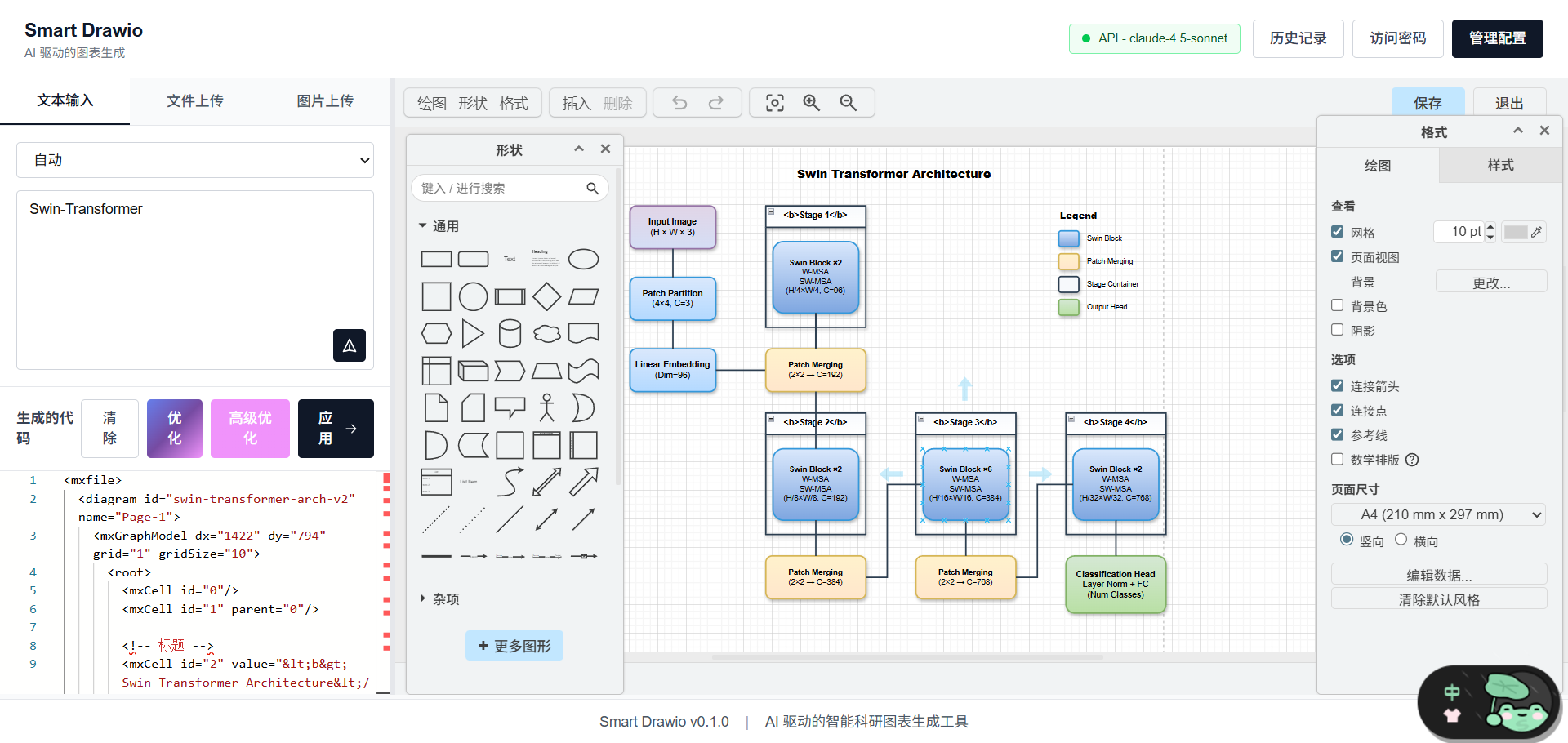

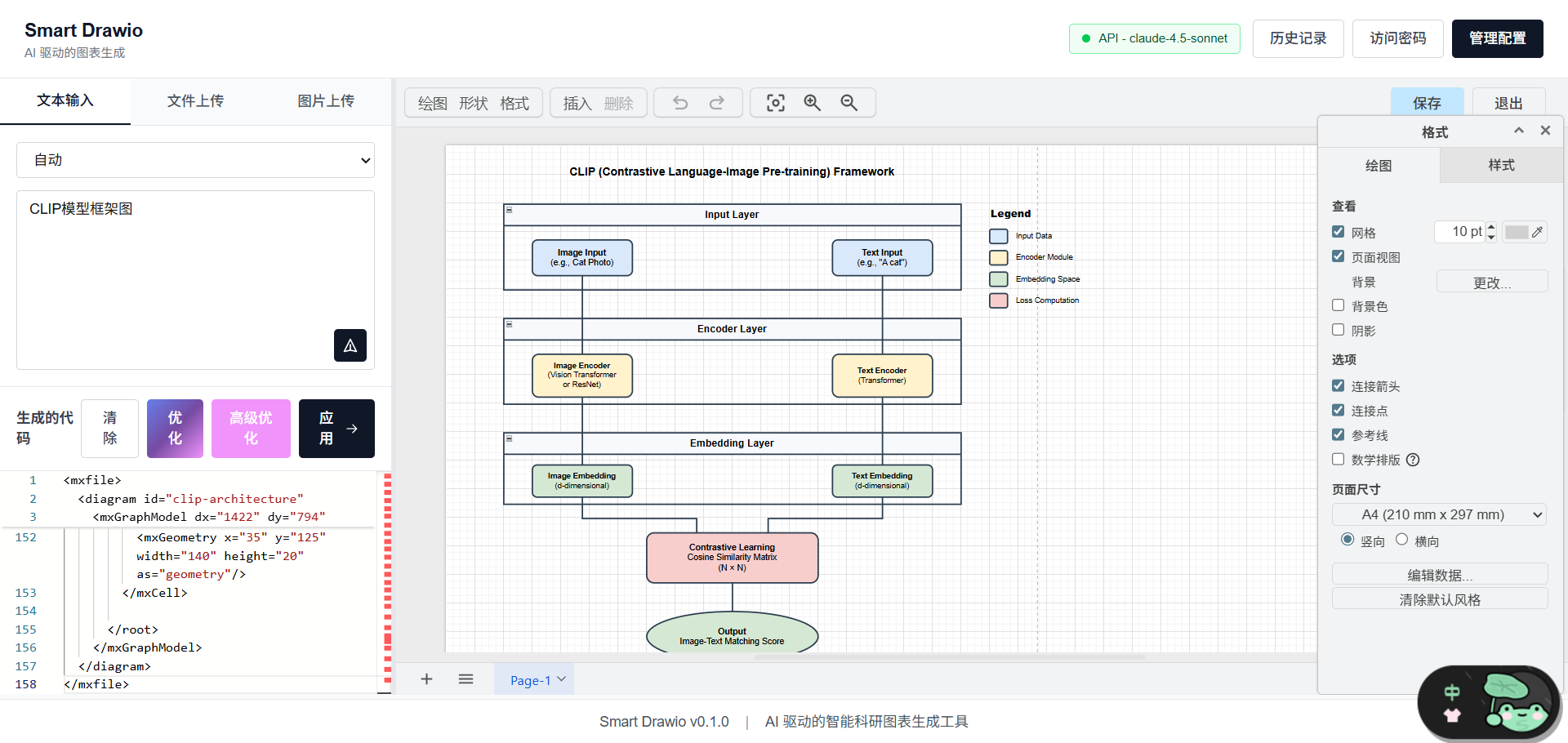

Swin-Transformer	CLIP

smart-drawio-next is a diagram generation tool built with Next.js 16, embedded Draw.io, and streaming LLM APIs. It helps you:

• Generate structured diagrams from natural language prompts
• Upload reference images and convert them into editable diagram content
• Fine-tune XML / JSON in Monaco Editor
• Sync output directly into an embedded Draw.io canvas
• Use post-processing tools to improve layout, connectors, styles, and annotations

The project includes multi-model configuration, access-password mode, generation history, and notifications. It can be deployed as a personal tool or an internal team service.

• Streaming generation with support for continuing truncated outputs
• Multimodal input with both text and image-based workflows
• Code + canvas workflow for editing XML and previewing the result side by side
• Post-processing toolchain for structure, text, connector, and style refinement
• Multi-provider config management for OpenAI / Anthropic-compatible APIs
• Local history with replay support for recent generations

The app supports 20+ diagram types. You can choose one explicitly or let the model decide:

• Flowchart
• Mind Map
• Org Chart
• Sequence Diagram
• UML Class Diagram
• ER Diagram
• Gantt Chart
• Timeline
• Tree
• Network Topology
• Architecture Diagram
• Data Flow Diagram
• State Diagram
• Swimlane Diagram
• Concept Map
• Fishbone Diagram
• SWOT Analysis
• Pyramid Diagram
• Funnel Diagram
• Venn Diagram
• Matrix Diagram
• Infographic

10 built-in color themes are available:

• Research
• Business
• Warm
• Cool
• Dark
• Contrast
• Pastel
• Forest
• Violet
• Neutral

After generation, you can continue refining the diagram in the sidebar tools panel. All operations are XML-based transforms.

Used for bulk layout and connector refinement:

• Grid Snap
• Orthogonal Routing
• Curved Routing
• Label Background
• Consistent Spacing
• Jump Crossings
• Rounded Edges
• Normalize Arrows
• Remove Waypoints

Used for stackable visual effects:

• Shadow
• Gradient
• Rounded
• Glass
• Sketch
• Comic
• Dashed
• Transparent
• Bold Stroke
• No Stroke
• Absolute Arc
• Cross-Hatch
• Dot Fill
• Zigzag Fill
• Semi-Opaque
• Fade Stroke
• Fixed Dash
• Open Arrow

Used for one-click full visual styles:

• Research Clean
• Presentation Cards
• Business Clean
• Flat Minimal
• Wireframe
• Comic Whiteboard
• Watercolor Sketch
• Minimal Outline
• Sticky Notes
• Blueprint Tech

Used for batch text formatting:

• Wrap Labels
• Center Text
• Text Panels
• Bold Text
• Compact Text
• Text Padding

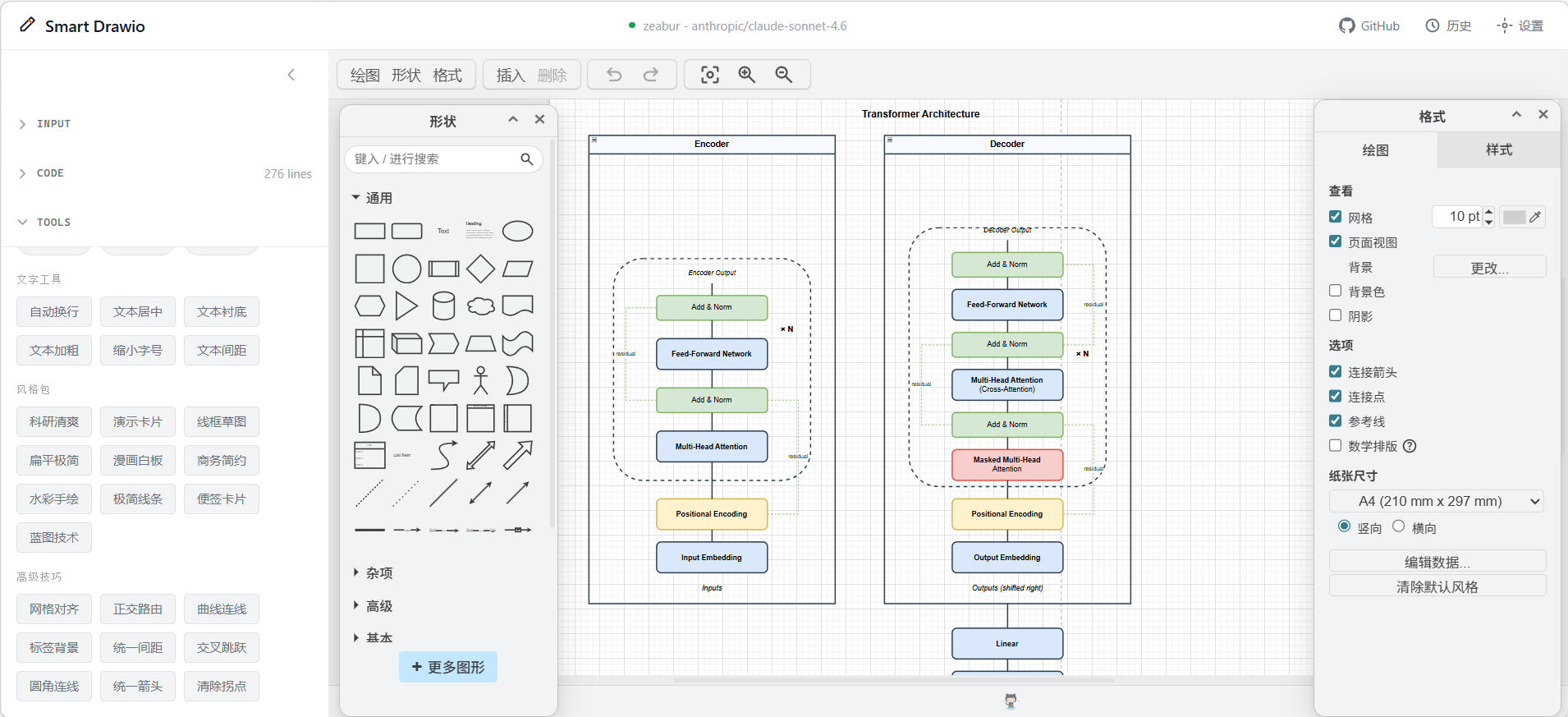

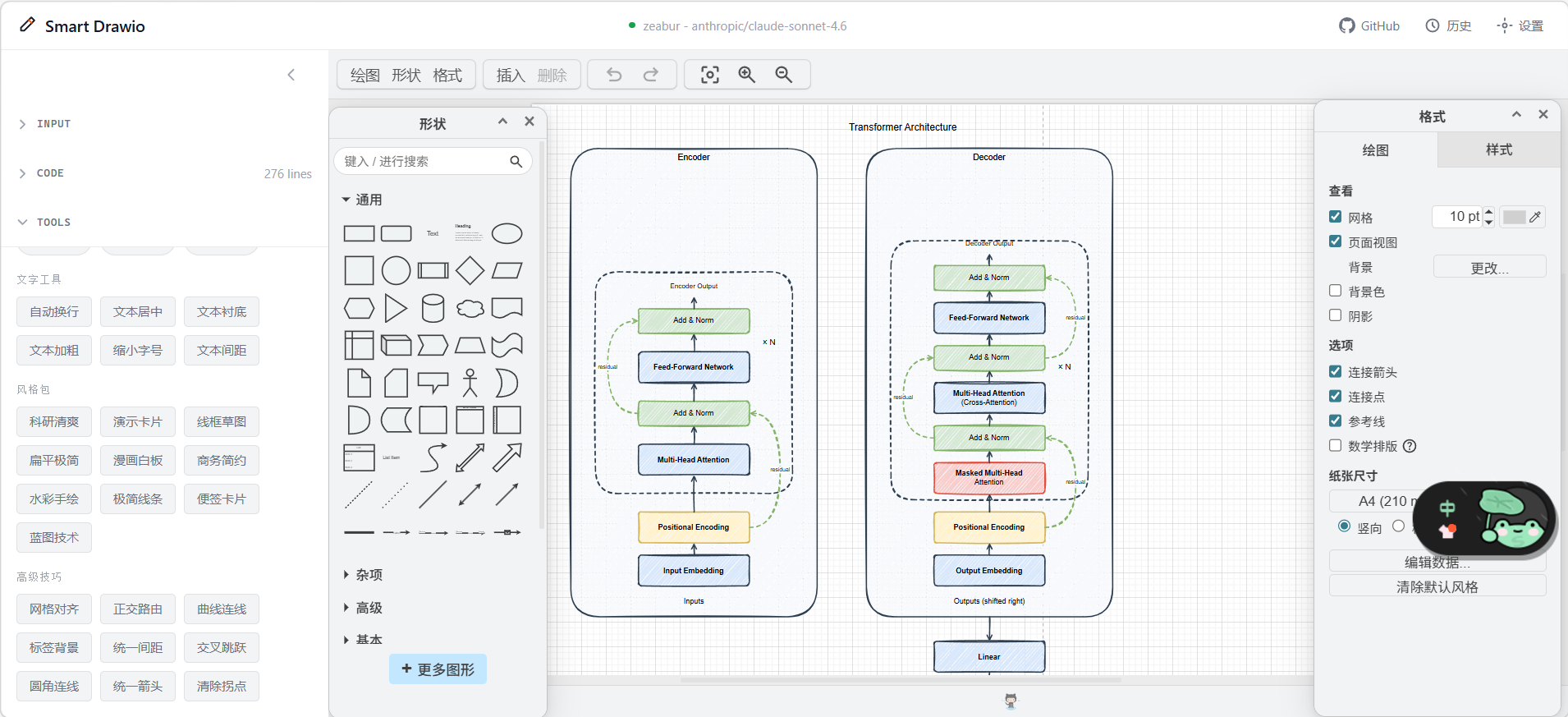

Baseline: no style	Preset: comic + cross-hatch

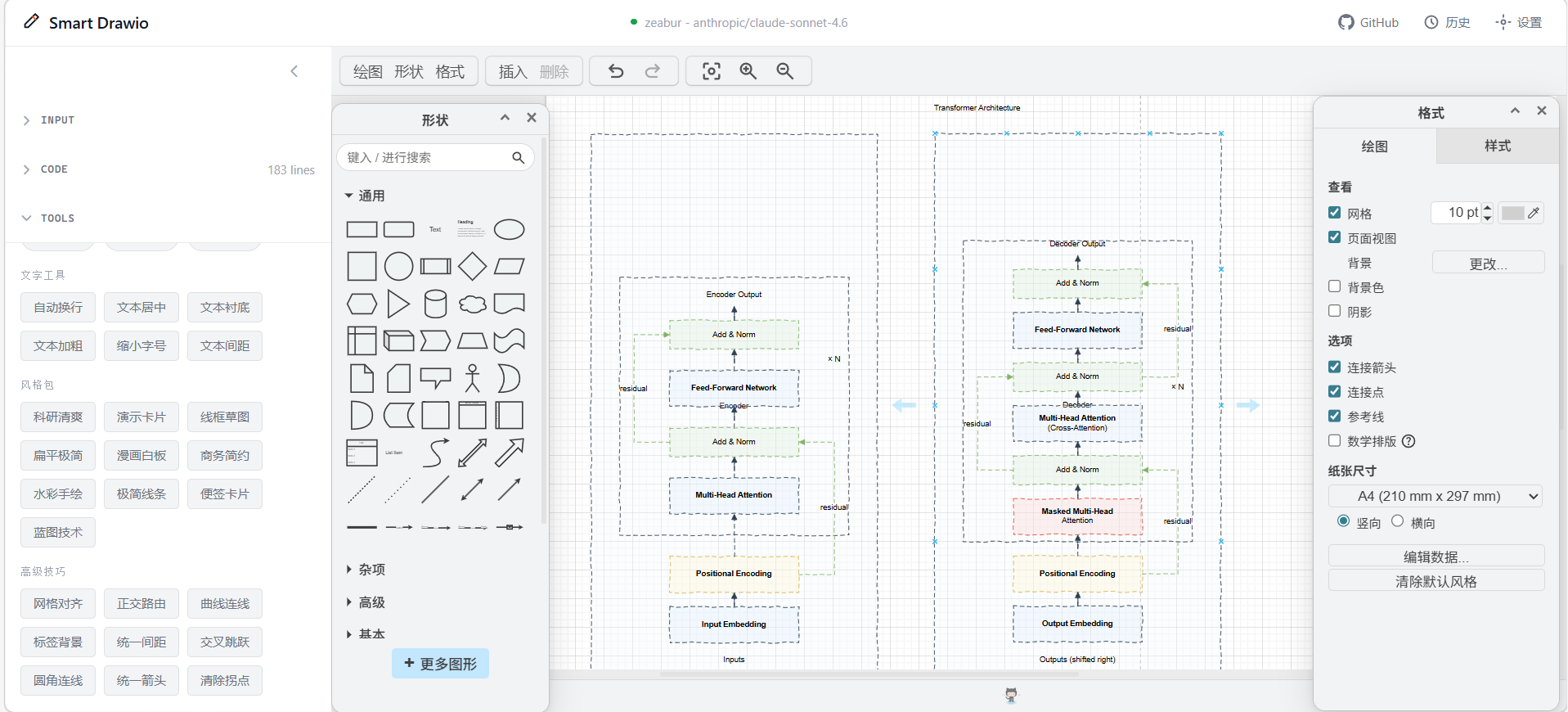

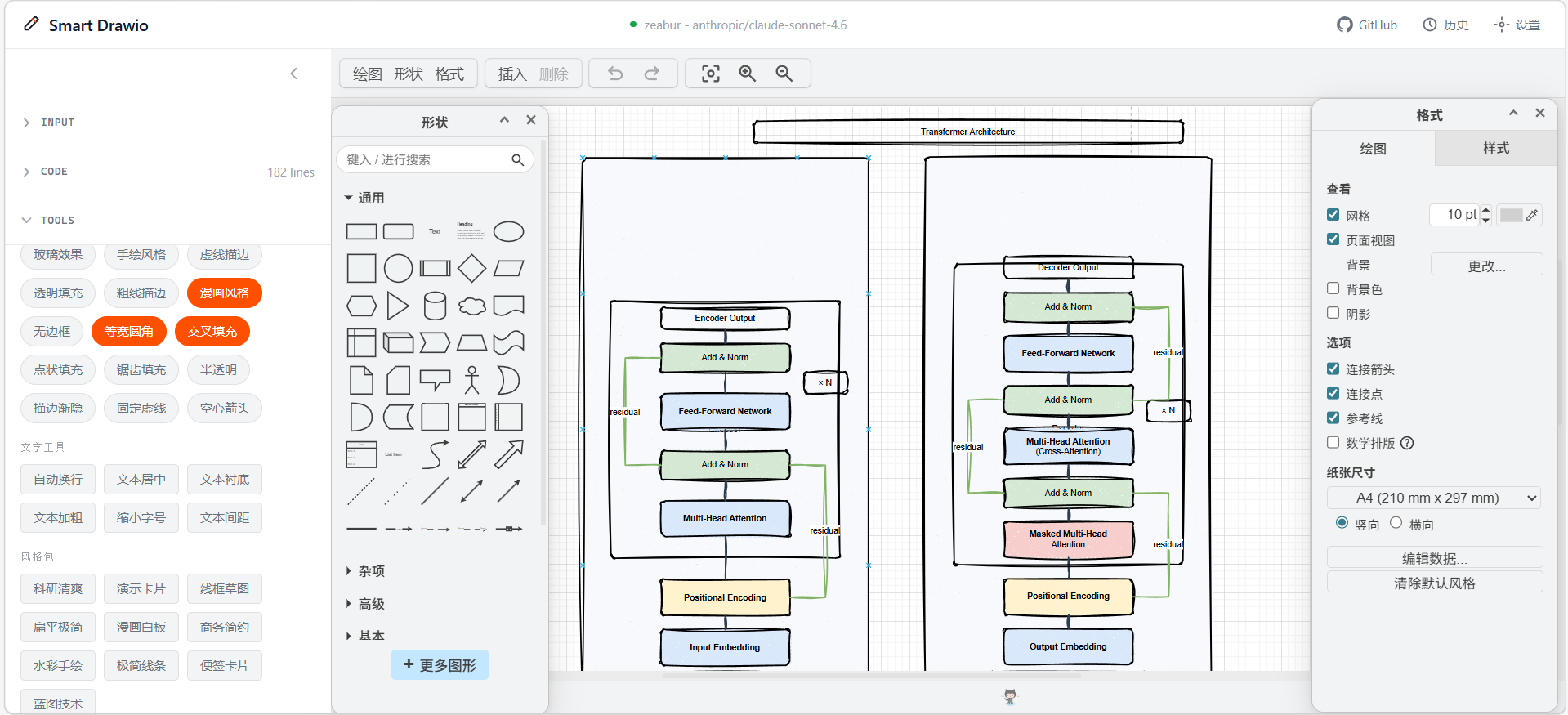

Style pack: blueprint tech	Style pack: business clean

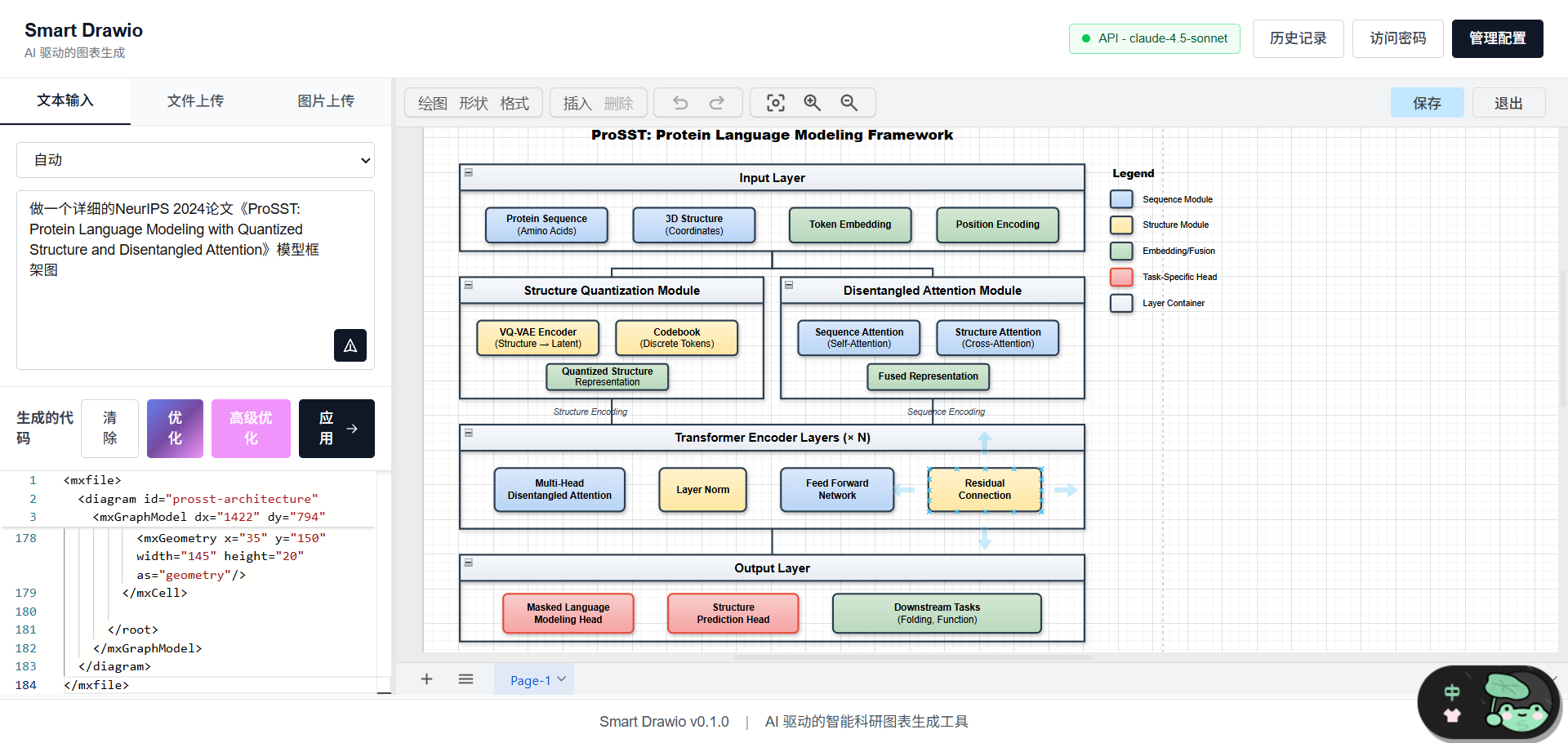

1. Input Area (Chat + ImageUpload)

   • Enter prompts
   • Upload reference images
   • Stop or continue generation

2. Code Editor

   • View and edit XML / JSON
   • Run clear, optimize, advanced optimize, and apply actions

3. Canvas

   • Render the generated result
   • Continue editing visually in Draw.io

4. Support Modals

   • ConfigManager
   • AccessPasswordModal
   • HistoryModal
   • OptimizationPanel
   • Other supporting panels

• Framework: Next.js 16 (App Router) + React 19
• Canvas: Draw.io embed
• Editor: @monaco-editor/react
• Styling: Tailwind CSS v4
• LLM Integration: OpenAI / Anthropic-compatible APIs with SSE streaming
• Persistence: localStorage

• Node.js >= 18.18
• pnpm >= 8
• An available OpenAI / Anthropic-compatible API key

git clone https://github.com/yunshenwuchuxun/smart-drawio-next.git
cd smart-drawio-next
pnpm install
pnpm dev

Then open: http://localhost:3000

• Docker >= 20.10
• Docker Compose V2

docker compose up -d --build

Then open: http://localhost:3000

The image uses a multi-stage build and Next.js standalone output for deployment-friendly packaging.

If you want multiple users to share one server-side configuration, set these in docker-compose.yml:

services:
  app:
    environment:
      - ACCESS_PASSWORD=your-secure-password
      - SERVER_LLM_TYPE=openai
      - SERVER_LLM_BASE_URL=https://api.openai.com/v1
      - SERVER_LLM_API_KEY=sk-xxx
      - SERVER_LLM_MODEL=gpt-4

You can also use a .env file based on .env.example.

If Docker needs a proxy or access to a model running on the host machine:

cp docker-compose.override.example.yml docker-compose.override.yml

Edit it for your environment, then restart:

docker compose up -d --build

Typical use cases:

• Routing traffic through a host proxy
• Accessing host-local Ollama or LM Studio
• Mounting a custom CA certificate for enterprise proxies

docker compose logs -f app
docker compose down
docker compose up -d --build
docker compose ps

By default, users configure these in the UI:

• Provider
• Base URL
• API Key
• Model

All values are stored in browser localStorage only.

If you want the API key to stay on the server:

1. Copy the example file:

cp .env.example .env

2. Set these variables:

• ACCESS_PASSWORD
• SERVER_LLM_TYPE
• SERVER_LLM_BASE_URL
• SERVER_LLM_API_KEY
• SERVER_LLM_MODEL

3. Restart the service, then users can enable the server-side config through the access password flow.

No. Local configuration stays in the browser. Requests first go to your own server, which then calls the external model provider.

The UI provides a continue-generation action automatically when needed.

Use a vision-capable model and make sure the image format and size are valid.

No. The app keeps only the most recent 20 entries by default.

• This project is based on smart-excalidraw-next
• If it helps you, consider:
  • Giving the repo a star
  • Sharing it with others

MIT
