HomeTiles

Touch dashboards for Home Assistant on ESP32 displays.
Lights, climate, sensors, energy, weather, cameras and more on a 4 to 10.1 inch touch screen.

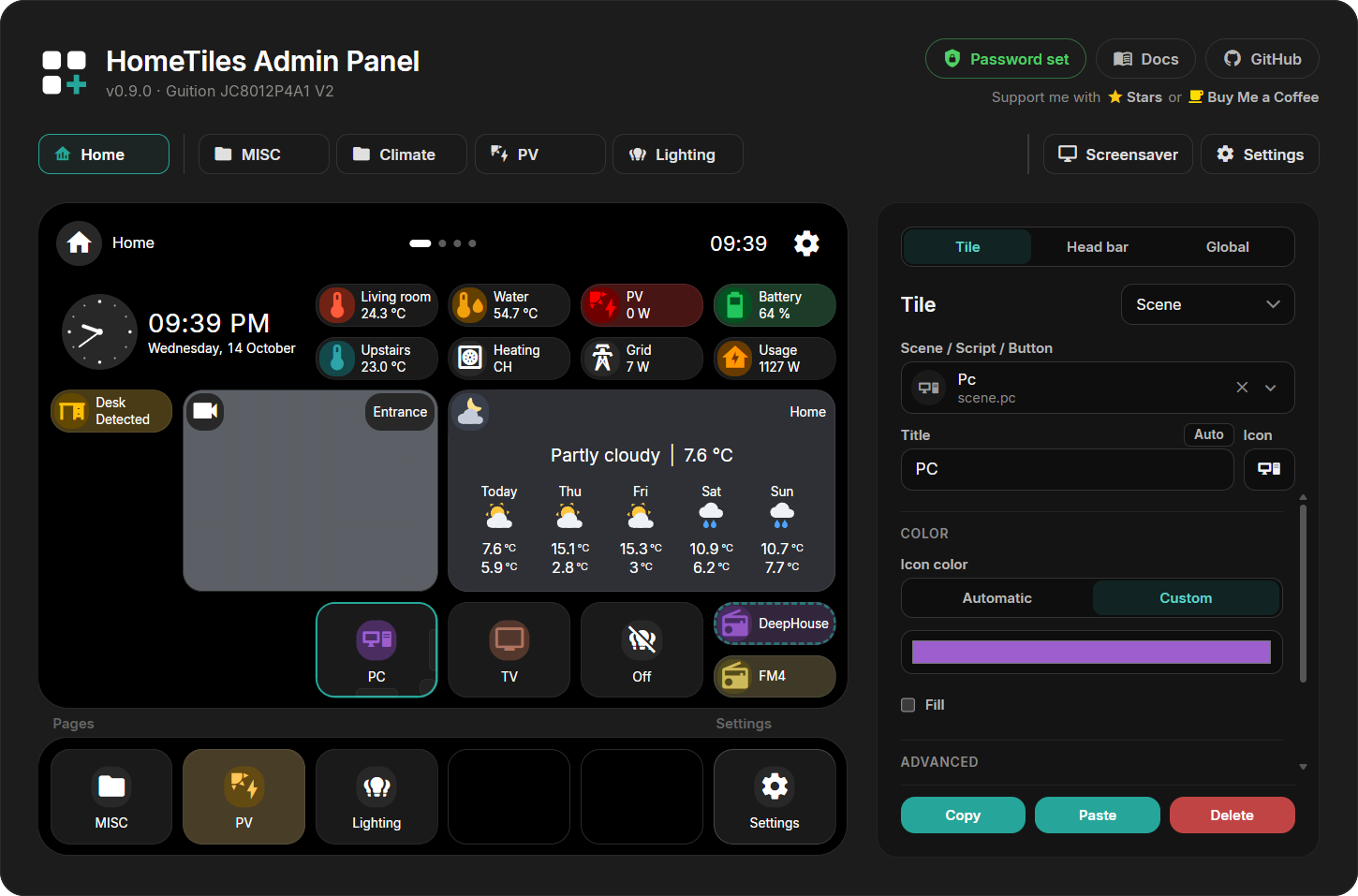

Build the dashboard in the browser; the Web Admin preview matches the display.

• Direct link to Home Assistant: press Pair on the display and add it in Home Assistant. No MQTT broker needed; existing MQTT setups keep working.

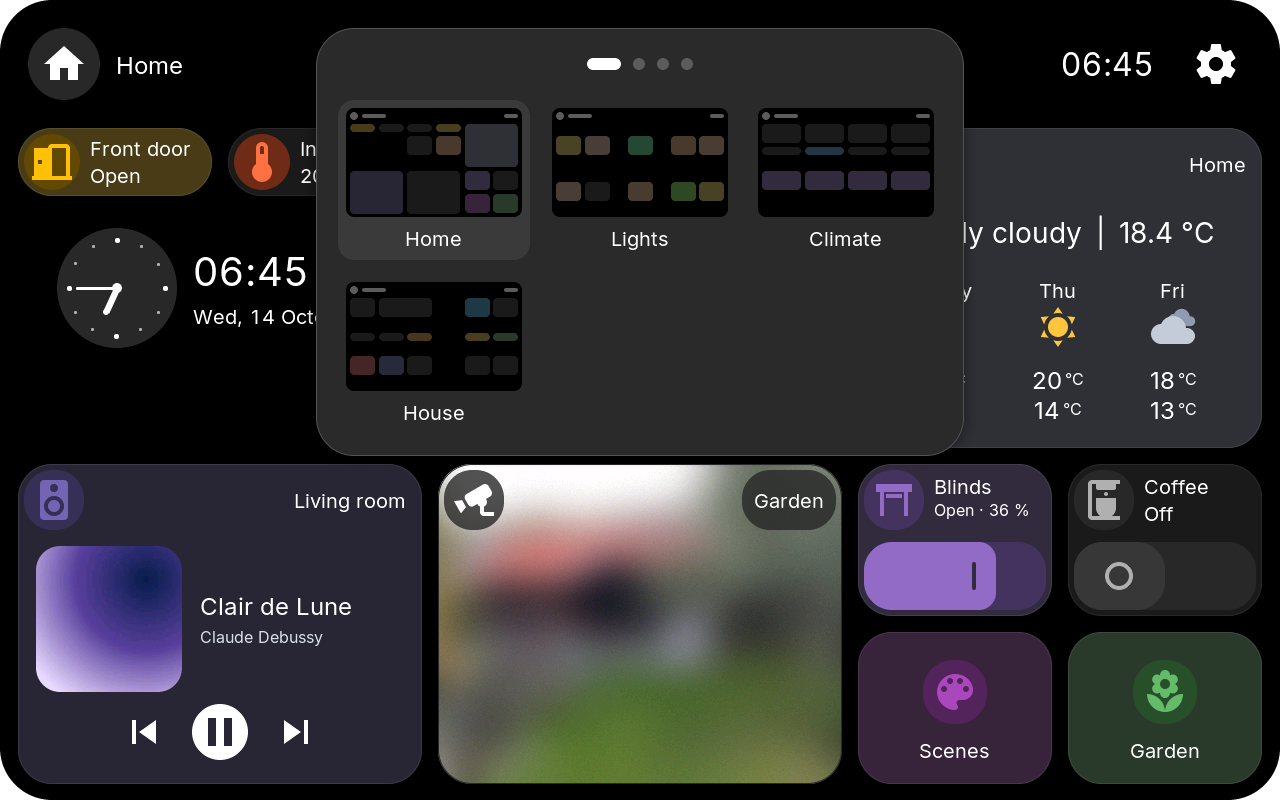

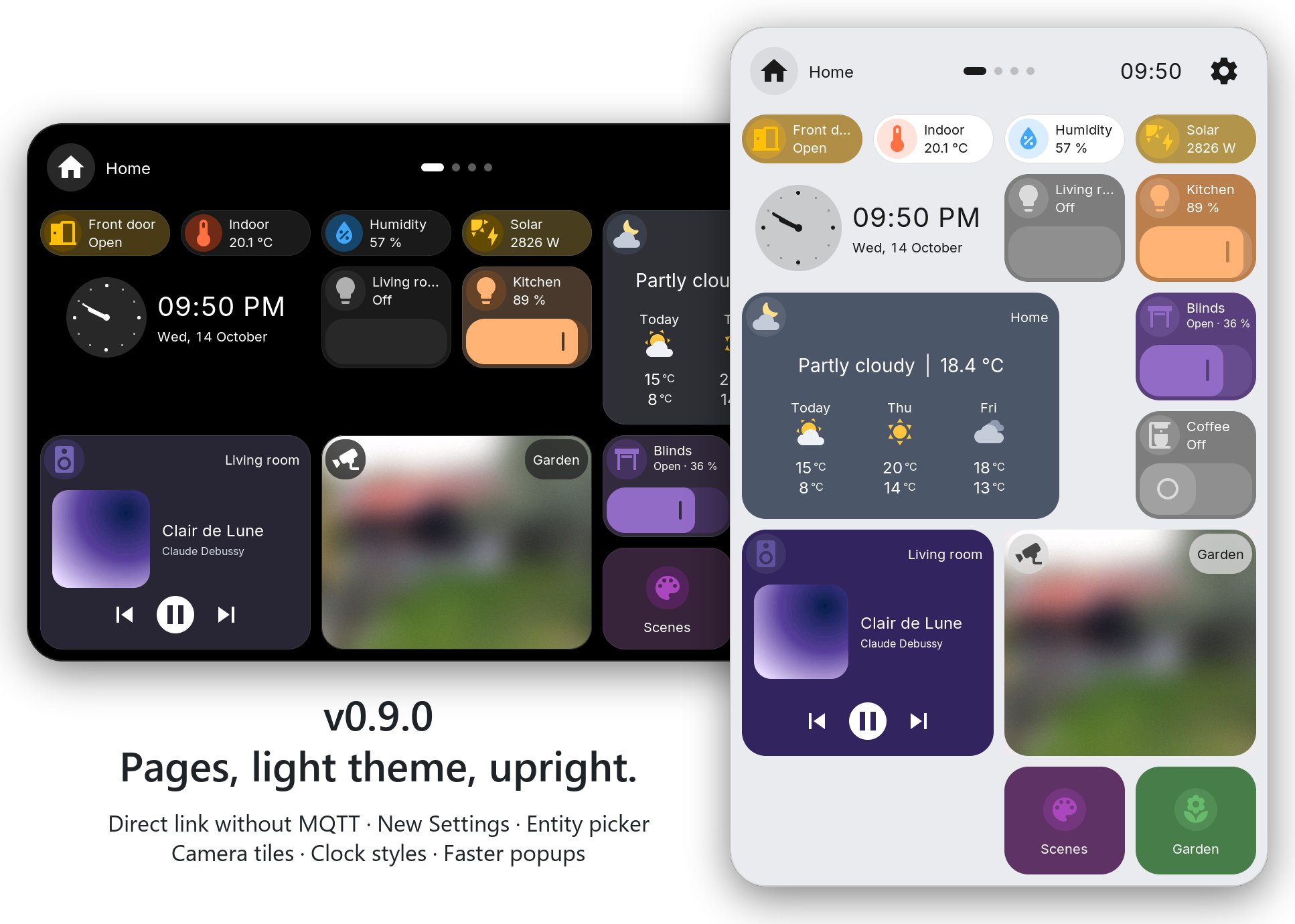

• Head bar and pages: fewer, larger tiles under a head with title, time and gear, up to five folders as pages beside Home, and an upright layout for ESP32-P4 displays.
• Light theme: Dark, Light or Automatic, on the display and in the Web Admin.

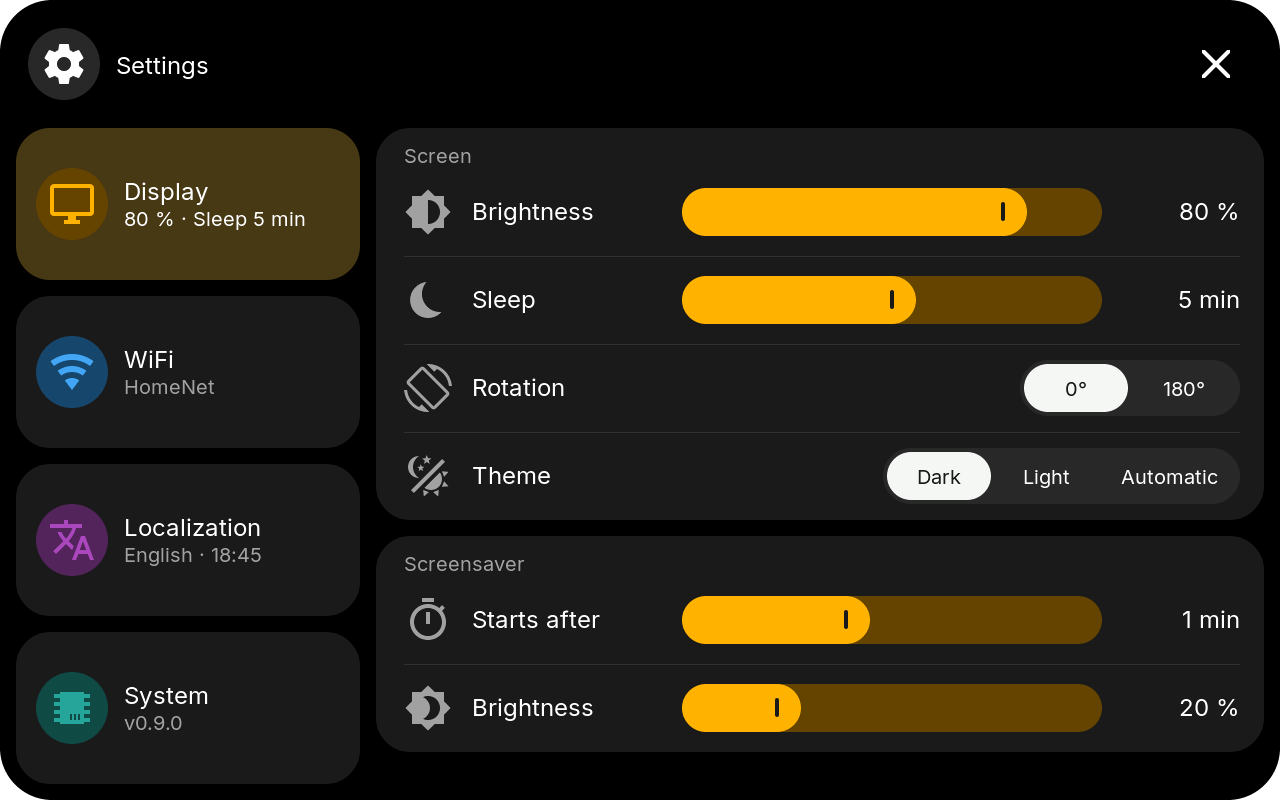

• New Settings: on the display, with a first-start setup in four steps.
• Entity picker: searches every entity like Home Assistant, with Recent and Favorites on top.

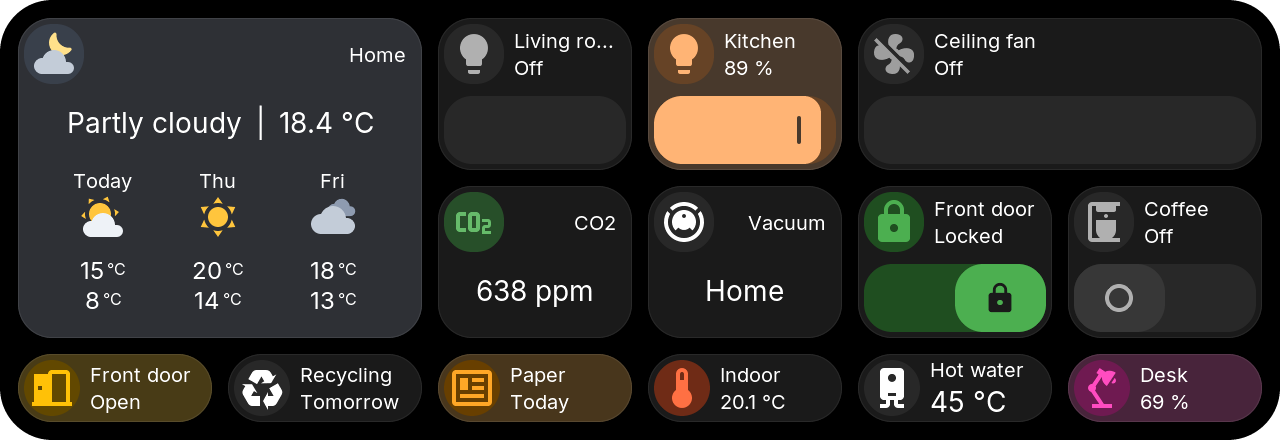

• Clock and Camera tiles: analog and wall clocks, camera tiles that show the picture, and cameras in full screen.

1. Update HomeTiles Bridge to v0.9.0 and export your dashboard, then update the display.
2. No MQTT broker needed: on the display, tap Pair under Settings → System → Security. Home Assistant shows Connect the panel; select Submit and compare the number. More
3. Every entity in the picker: on the display, tap Allow next to Web Admin password under Settings → System → Security, then set the password in the Web Admin under Settings → System within two minutes. More
4. New layout: your tiles stay in the classic layout. In the Web Admin, open Global → Change layout, place the tiles for the head bar layout and select Switch. More

All changes

You need a compatible display, Home Assistant and HomeTiles Bridge.

1. Find your exact model in the device list.
2. Follow the installation: flash the display in the browser, install the Bridge, pair the display and add your tiles.

Firmware updates · Troubleshooting · Report a problem · Contribute · Architecture

HomeTiles is free and open source under the MIT License.
